3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05

- 42 -

3.3.5 Inserting Ladders from the Edit Window into a Ladder

Program

This subsection describes how to insert ladders from the edit window

into a ladder program (on the display window).

NOTE

1 If there is a ladder error in a ladder in the edit

window, it is impossible to select the <Insert> and

<Replace> buttons.

2 Double-clicking a ladder in the display window

causes the ladders in the same net as the clicked

ladder to be copied to the edit window.

Procedure

1 In the edit window, create the ladders you want to insert into a

ladder program.

For an explanation about how to operate the ladders on the edit

window, see the subsections listed below:

Table 3.3.5

Operation Subsection

Entering basic instructions 3.3.6 “Entering Basic Instructions”

Entering horizontal lines 3.3.8 “Entering Horizontal Lines”

Entering and deleting vertical

lines

3.3.9 “Entering and Deleting Vertical Lines”

Entering function instructions 3.3.7 “Entering Function Instructions”

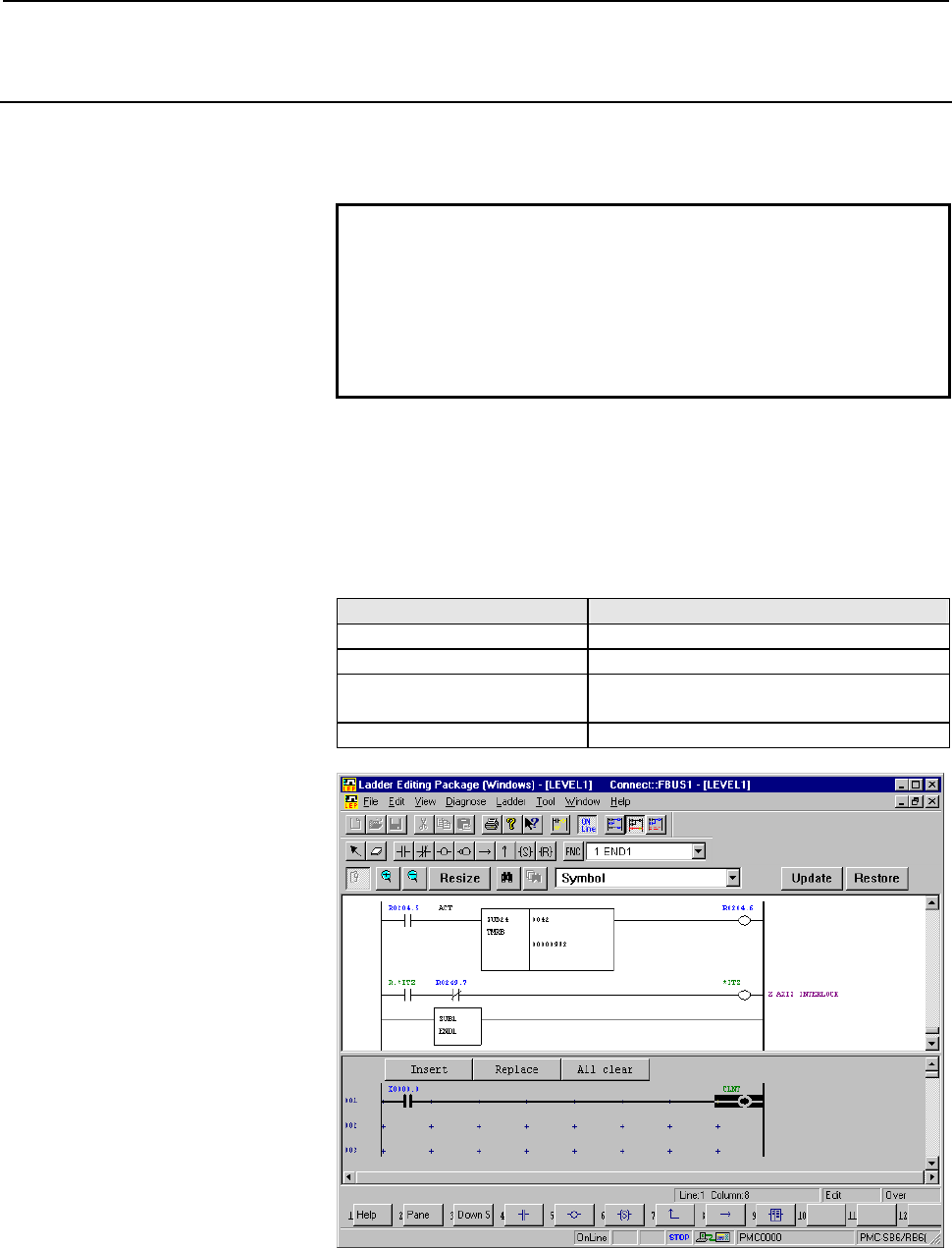

Fig. 3.3.5 (a)
