9.DIAGNOSIS B-63484EN/05
- 284 -
9.1.5 Mnemonic Monitor
A language selection of monitor screen
This section describes the procedure for selecting the language of
monitor screen.
To display the PMC program made by mnemonic files with a
mnemonic language monitor screen, please select the monitor
language by the following procedure.
Procedure

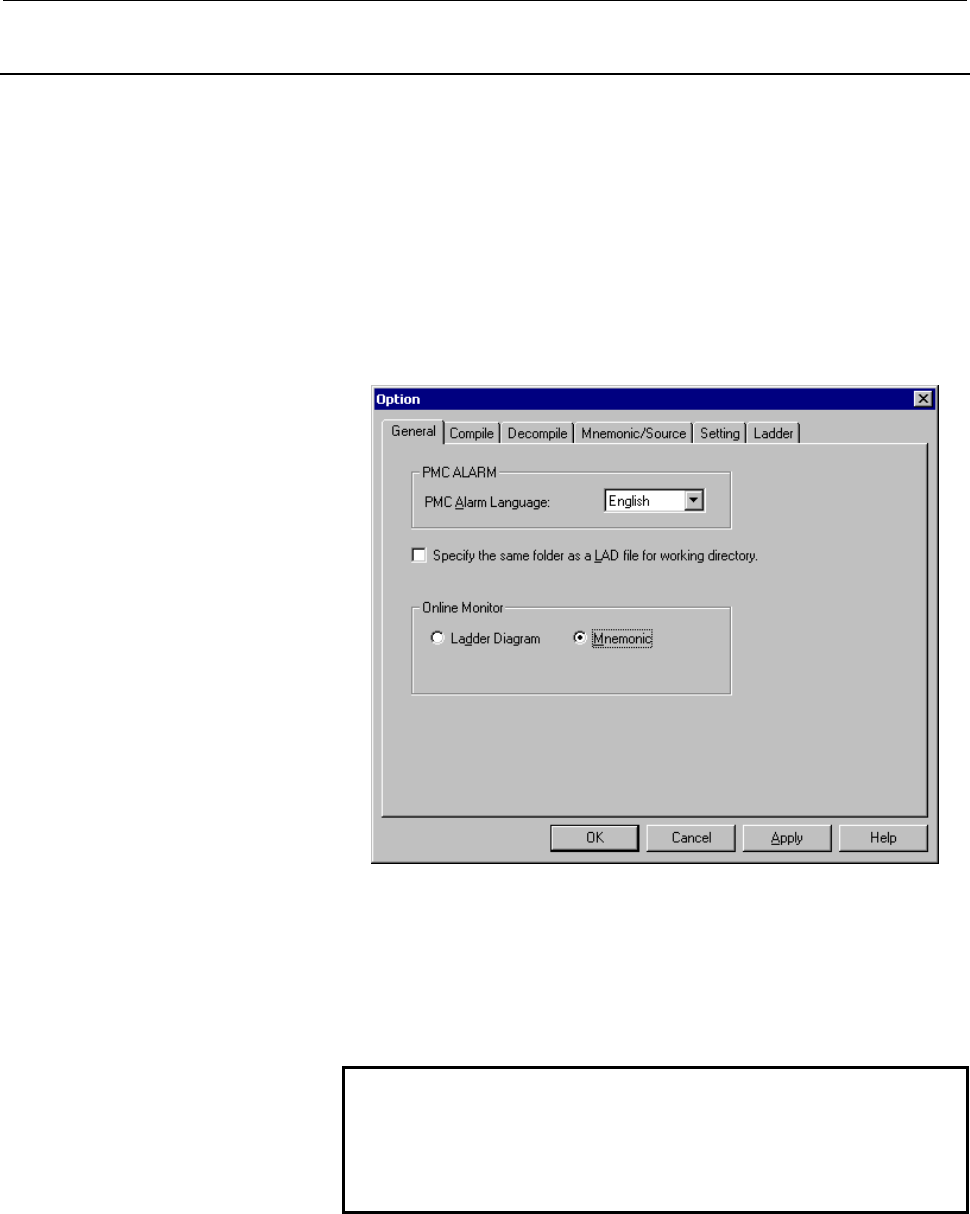

1 Select [Tool] - [Option…]. Then, the [Option - General] dialog
appears.
Fig. 9.1.5
2 To select the language of monitor screen, click [Ladder Diagram]
or [Mnemonic].
3 When pressed <OK> button or <Apply> button, the language of
monitor screen is settled.
NOTE
The following screens are always displayed with
ladder language
• Collective display
• Search results list display
