Open CNC (Ladder Editing Package, Windows) Operators manual Page 196

Operators manual
3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05
- 168 -

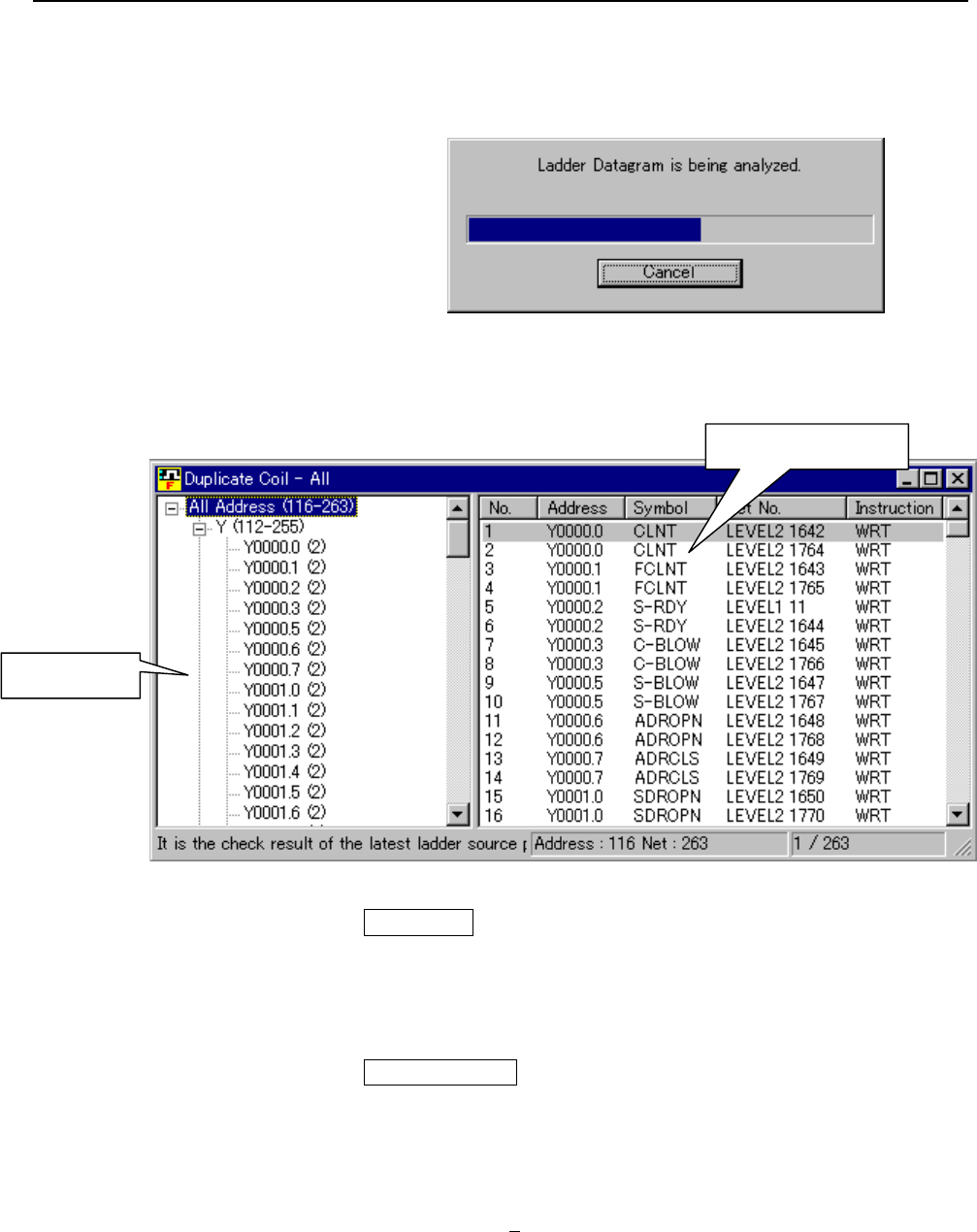

3 To start Duplicate Coil Check, click <OK> button on [Duplicate
Coil – Address Setting] dialog box. The following dialog is
displayed while checking duplicate coil. (Please click <Cancel>
button to abort duplicate coil check.)
Fig. 3.17.1 (c)
4 When the check is completed, [Duplicate Coil] screen is
displayed.
Fig. 3.12.1 (d)
Address List
Address of duplicate coil is displayed by the tree form
The number of nets is displayed in parentheses. (In the line for
“All Address” and kind of address, the number of addresses and
nets is displayed.)
Duplicate coil list
The information list (Address/Symbol/Net No./Instruction) of the
duplicate coil is displayed.
The ladder edit screen of the address on the cursor line can be
easily displayed (double-clicking or < F10 > key). Moreover, the
content of the display can be output to the text file by selecting
[Output a tex
t format file…] in [Tool] menu.
Duplicate Coil List
A
ddress list
Previous page
Next page
