FANUC OPEN CNC LADDER EDITING

PACKAGE (Windows) SUPPLEMENTARY

OPERATOR’S MANUAL

01 05/01/14 First issue B-63484EN/05-1

EDIT

DATE

DESIG.

DESCRIPTION

54/60

TITLE

DRAW.NO.

SHEET

CUST.

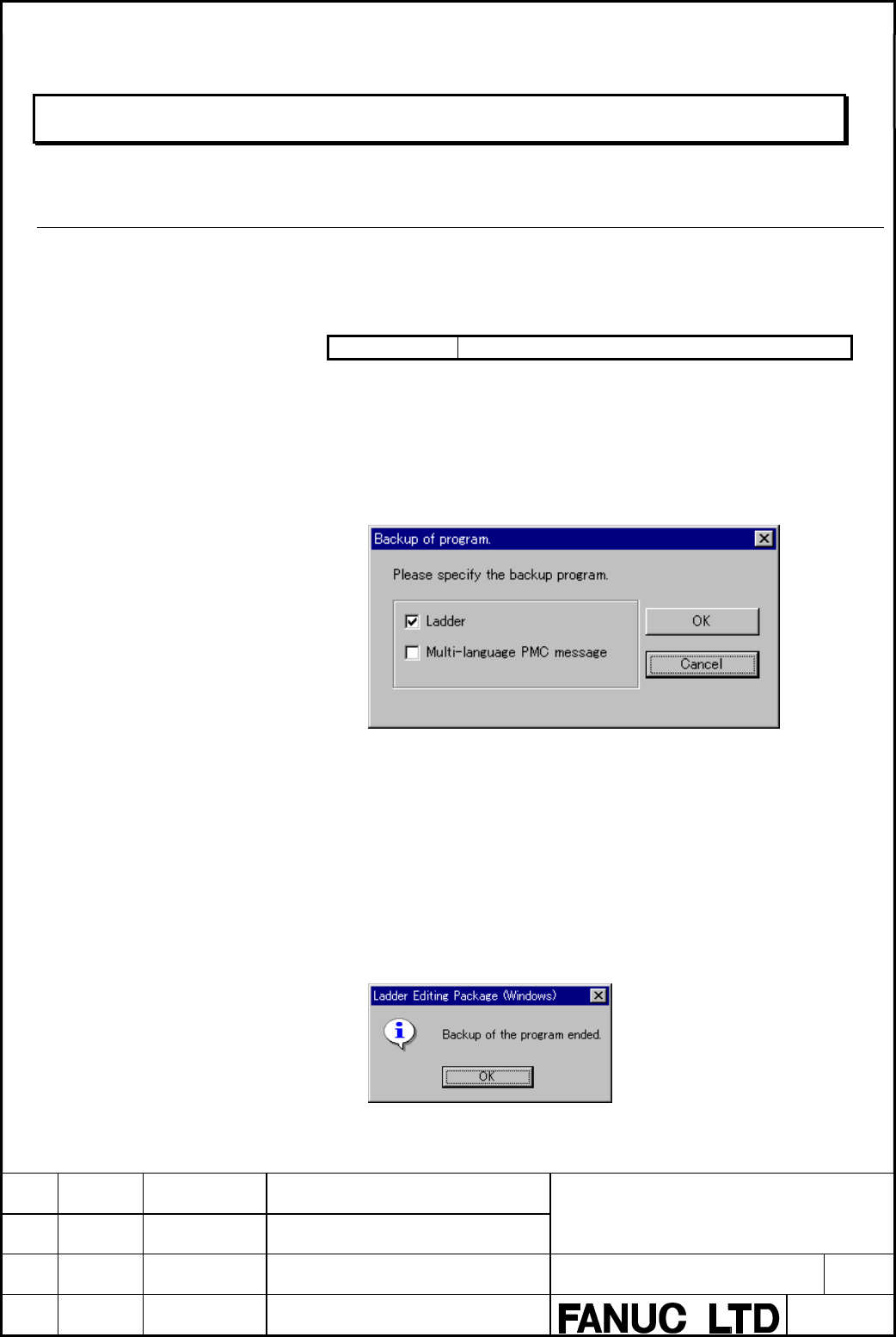

6.3. Writing multi-language PMC message into F-ROM

7.7 Writing multi-language PMC into F-ROM

Write the stored multi-language PMC message into F-ROM.

Supported PMC models

Supported

Series 30i/31i/32i-A PMC

Procedure

1. Connect to PMC (refer to 7.1 SETTING UP COMMUNICATION)

2. Select [Tool] – [Backup]

The [Program backup] appears

Fig. 7.7(a)

Check the data to be written into F-ROM

Click < OK > button when you back up the program.

Click <cancel> button when you discontinue the backup of the

program.

3. The following screen is displayed when the backup finished

successfully.

Fig.7.7(b)

Insert after 7.6 WRITING SEQUENCE PROGRAMS INTO F-ROM
