Open CNC (Ladder Editing Package, Windows) Operators manual Page 341

Operators manual

Page of 571

/ 571

B-63484EN/05 9.DIAGNOSIS

- 313 -

5 Click the <Sampling> button. The <Sampling> button then

enters the down state, and sampling starts.

6 To terminate sampling, click the <Sampling> button again. The

button enters the up state, and sampling terminates.

• Maximum number of signals sampled simultaneously: 16

• Sampling interval: 8 or 4 msec

• Maximum sampling period:

10 sec (when the sampling interval is set to 8 msec)

5 sec (when the sampling interval is set to 4 msec)

9.7.2 Toolbar

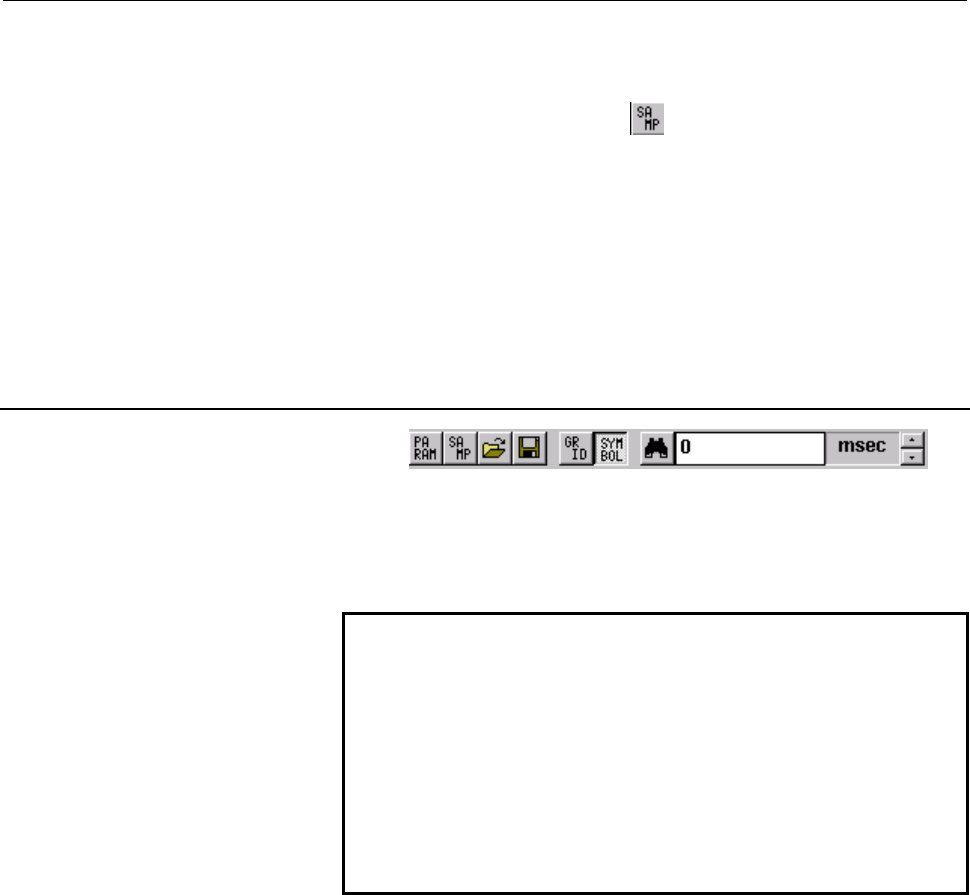

Fig. 9.7.2

<1> Parameter

<2> Start and stop of sampling

NOTE

1 While the signal analysis function is being

executed, the signal trace function cannot be used.

If the <Sampling> button is clicked during signal

tracing, a message box appears, indicating "Signal

Trace function is running."

2 When the automatic signal read function is

executed at power-on, the displayed button is in

the down state, which indicates that sampling is in

progress.

<3> Open File

Reads a signal analysis data file, and then displays waveforms.

The extension of signal analysis data files is SAN.

<4> Save As

Saves signal analysis data in a file with a file name specified

(extension: SAN).

<5> Grid line on/off

Specifies whether to display grid lines.

When no grid line is displayed, the button is in the up state; when

grid lines are displayed, the button is in the down state.

The color and line style of grid lines are set from the context

menu which is displayed by right-clicking a displayed grid line.

<1><2><3> <4> <5> <6> <7> <8> <9>
