9.DIAGNOSIS B-63484EN/05

- 286 -

Mnemonic data in a mnemonic monitor screen

When the mnemonic data used at a mnemonic file conversion is

corresponding to the PMC side, it is displayed in a mnemonic monitor

screen.

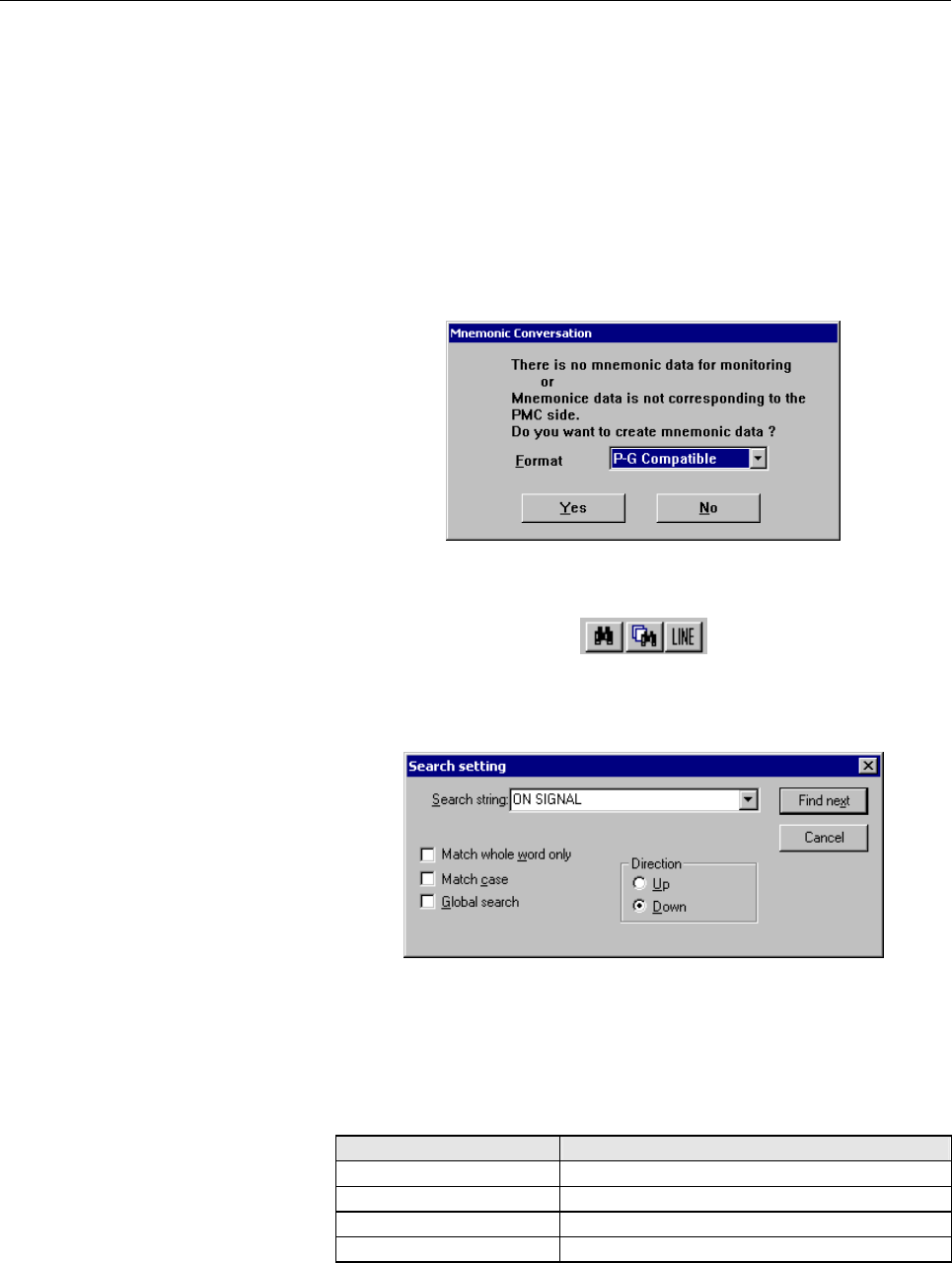

When there is no mnemonic data for monitoring or the mnemonic data

is not corresponding to the PMC side, the following dialog-box is

displayed.

Please select a mnemonic format (P-G Compatible, Label/Subprogram,

Full option).

And then, a mnemonic monitor screen is displayed with the selected

format.

Fig. 9.1.5 (b)

Toolbar

<1> <2> <3>

Fig. 9.1.5 (c)

<1> Display a [Search setting] dialog-box (Ctrl+F)

Fig. 9.1.5 (d)

<2> Switch search area (Global/Local) (Ctrl+F3)

<3> Display a line number (off/on)

Shortcut keys

Table 9.1.5

Shortcut key Corresponding function

[F3] Search(downward)

[Shift]+[F3] Search(upward)

[Ctrl]+[F3] Switch search area (Global/Local)

[Ctrl]+[F] Display a [Search setting] dialog-box
