Open CNC (Ladder Editing Package, Windows) Operators manual Page 232

Operators manual
5.COMPILATION AND DECOMPILATION B-63484EN/05
- 204 -
The details of the options are listed below.
Table 5.1 (a)
Option Explanation
Condense
When a ladder that has the same number of
steps is compiled, the object code is
decreased.
Output Symbol/Coil-comment
A symbol that can be displayed on display
unit of CNC, and an accompanying coil
comment are output to an object code.
Ignore too long strings of the
symbol
Any symbol that exceeds six characters in
length is replaced by a space code of six
characters and output to an object code
together with a coil comment.
Output Comment A coil comment is output to an object code.
Output Netcomment pointers
A net comment pointer is output to an object
code.
Multiple used check of the
F
unction parameter number
Functions TMR, TMRB, TMRBF, CTR, DIFU,
and DIFD are checked if they are duplicated.
If any, a warning is displayed.
Setting of Password
A password is added to an object code. Enter
a password at the start of execution.
Coil-comment language
Specify the format in which to output a coil
comment to an object file when compiling a
source program.
English:
Japanese coil comments are replaced by
spaces and output to an object file.
(Conventional specification)
Japanese:
Japanese coil comments are converted
directly and output to an object file.

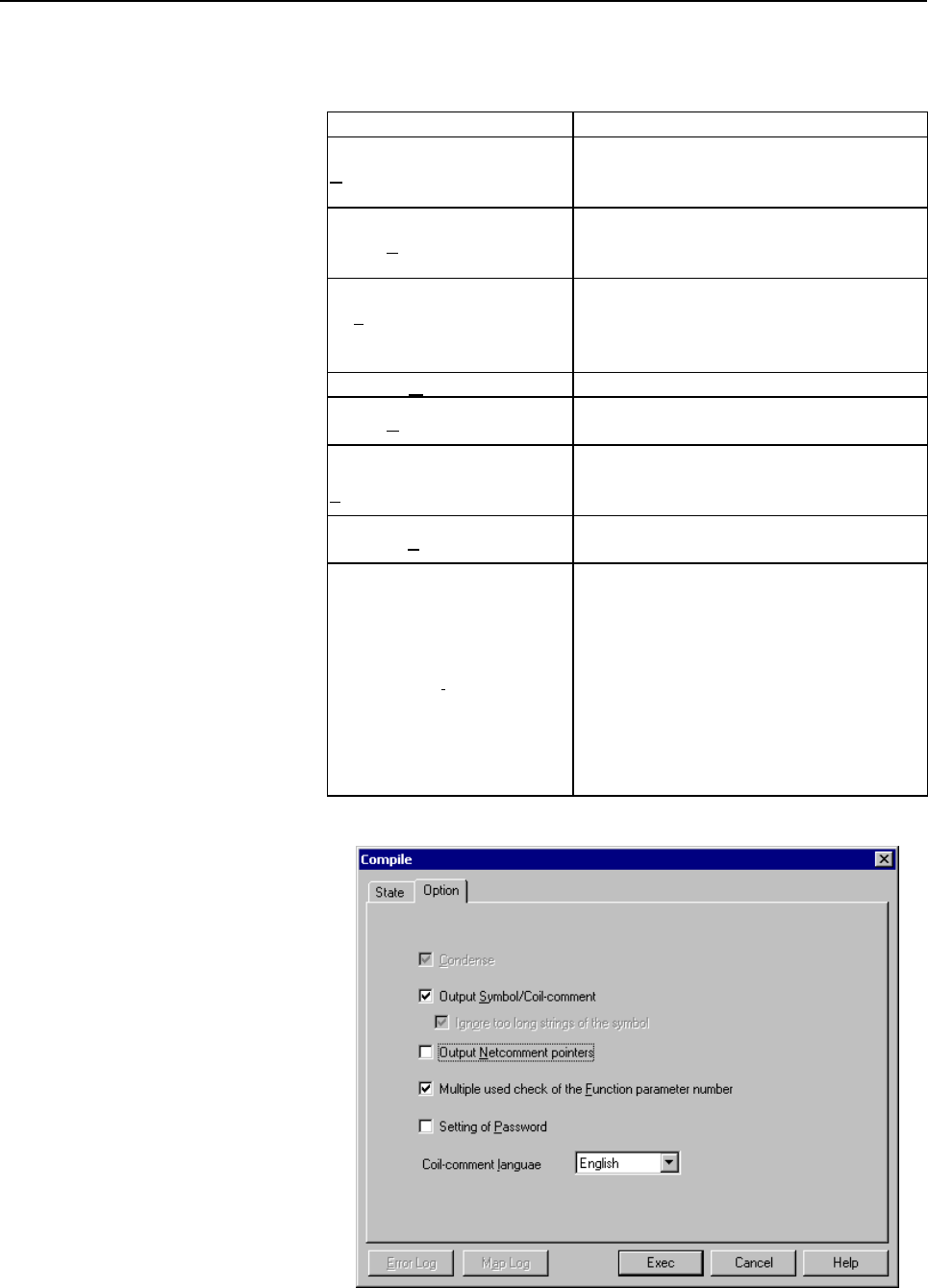

• PMC model which does not support the multiple comments
Fig. 5.1 (c)
Previous page
Next page
