3.3.26.1 Setting the maximum number of undo operations

Procedure

1 Select [Tool]-[Option]. Then click the [Ladder] tab.

2 Move the cursor to [Undo max number], and set the maximum

number of Undo operations.(Range of setting : 0 - 50)

3 Click the [OK] button.

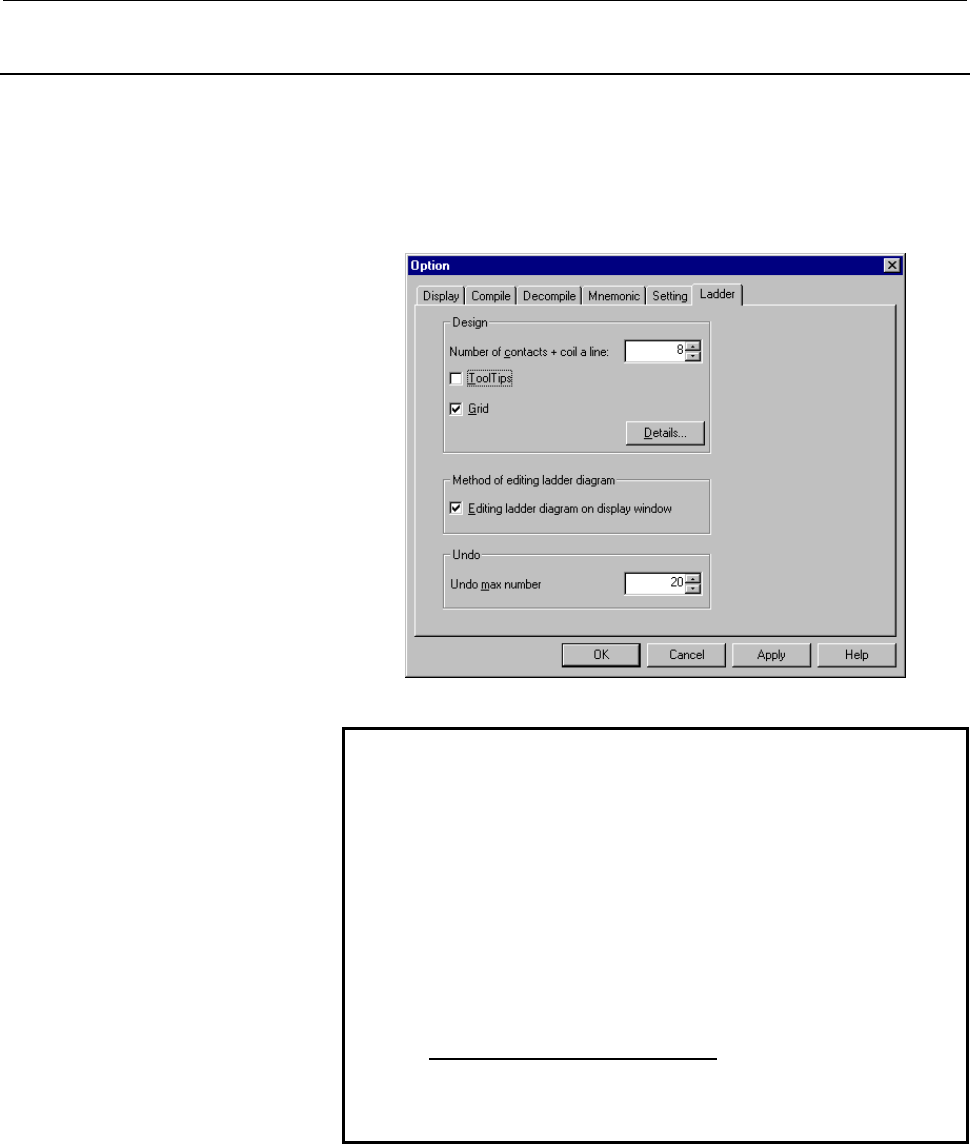

Fig. 3.3.26.1

NOTE

1 This function is effective to the following edit operations.

- Ladder editing in the direct ladder edit screen

(Includes “Change of PMC address by Replace

function”.)

- Addition and deletion of sub-program (P1/P2…) in

program list screen.

2 Undo log is erased by the following operation.

- Changing the “Number of contacts + coil a line”

- Changing the “Method of editing ladder diagram”

- Changing the online mode

- Executing the Decompilation

- Importing the source program

3 There is a case that the operation cannot be canceled

correctly, when the nets which

contain the error are

connected.
