6.MNEMONIC EDITING B-63484EN/05

- 244 -

6.6 MNEMONIC OPTIONS

A specified character

is separate in “Conversion into a mnemonic file”

and “Conversion into the source program”. And the replacement of the

white-space character is selectable on the mnemonic option

daialog-box ([Tool] – [Option - Mnemonic/Source]).

A specified character

is:

The white-space character is treated as a separate character in a

mnemonic file. When converting the source program into a mnemonic

file, it is possible to replace the white-space character in the symbol

with another character. The replaceable character is described as “A

specified character”.

When converting a mnemonic file into the source program, it is

possible to replace the white-space character with a specified

character.

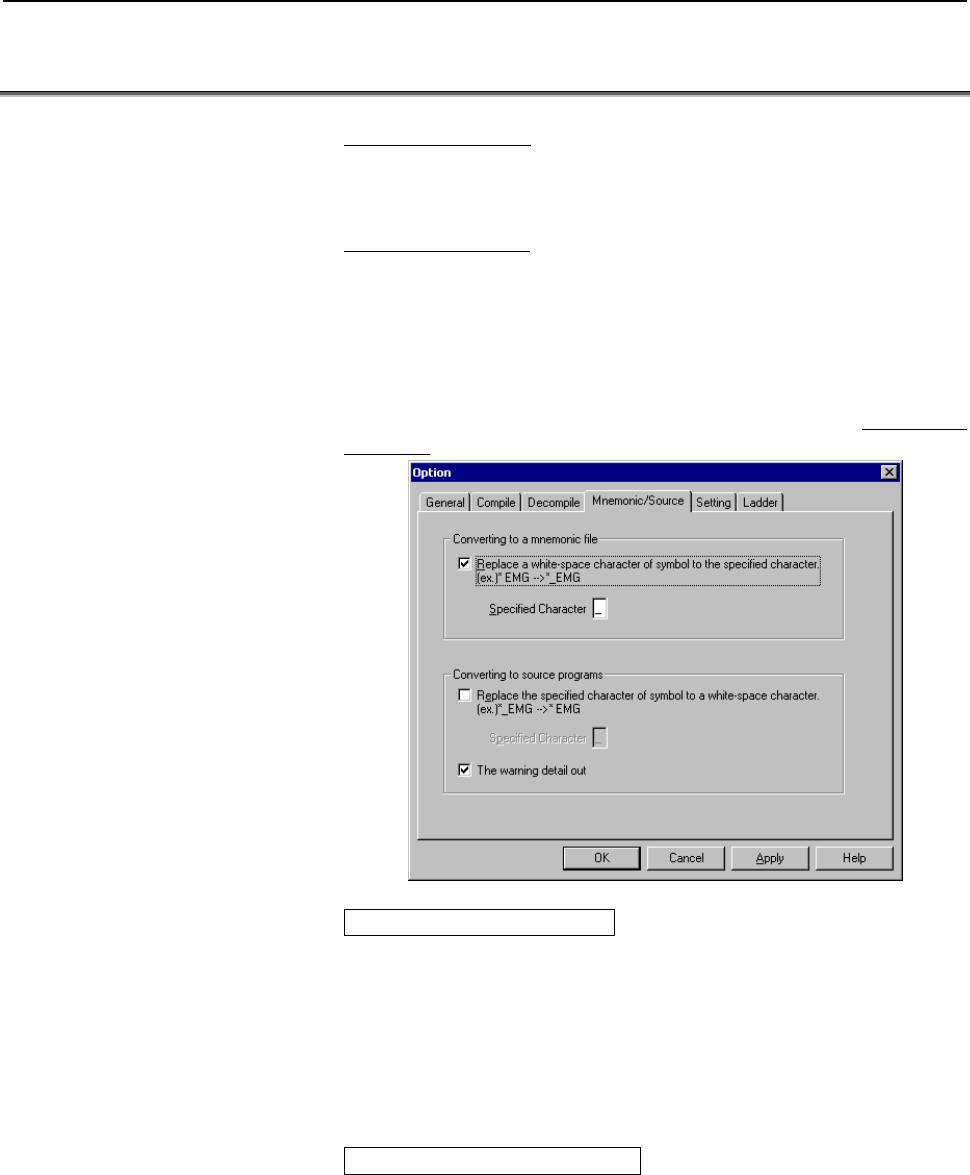

Fig. 6.6

Converting to a mnemonic file

To replace the white-space character with another character when

converting to a mnemonic files, please check [Replace a

white-space character of symbol to the specified character].

(Default: checked on)

When this box is not checked, the white-space characters in a

symbol are output to a mnemonic file without being replaced.

Enter the replacing character in the [Specified Character] edit

box (one half-size character).

Converting to source programs

To replace the specified character with the white-space character

when converting to source programs, please check [Replace the

specified character of symbol to a white-space character].

(Default: checked off)

When this box is not checked, the specified characters in a

symbol are output to a symbol data without being replaced.

Enter the replacing character in the [Specified Character] edit

box (one half-size character).
