B-63484EN/05 10.EXTENDED SYMBOL/COMMENT FUNCTION

- 337 -

CAUTION

1 Same symbol data can not be registered. As error

message is displayed when adding new data,

2 More than one symbol can be set for one address.

In this case, the original symbol data may not be

restored by decompilation. It is confirmed to check

[Multiple use check of the symbol address] of

compile option.

3 Symbol set to P address always becomes a global

symbol.

10.2.4 Modifying Symbol and Comment Data

Procedure

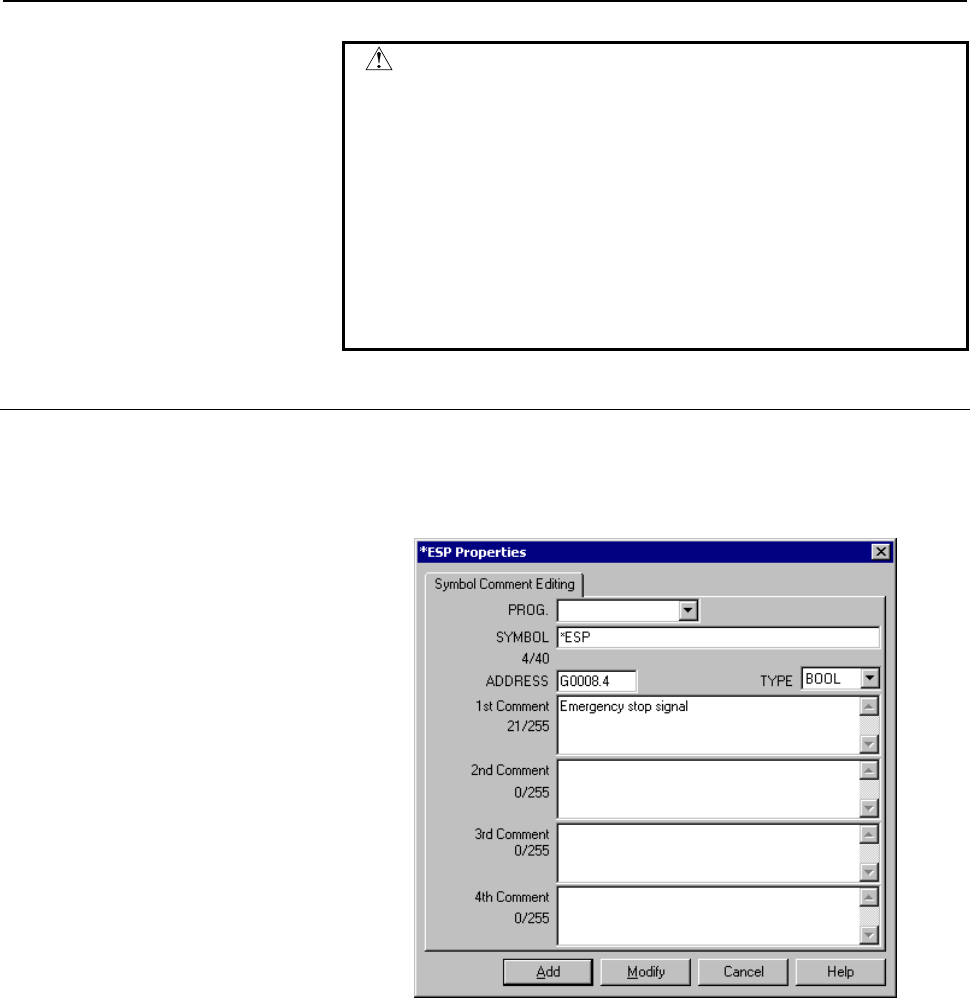

1 Double-click the symbol that you want to modify. (Or position

the cursor to the symbol and press [Enter] key.) Following

dialog will appear.

Fig. 10.2.4

2 Modifying the symbol or comment.

<Add> Add the symbol and comment. Click to add a registered

symbol as another new symbol.

<Modify> Modify the symbol and comment. Click to change the

symbol and comment.

<Cancel> Click to stop registration of the symbol.
