Open CNC (Ladder Editing Package, Windows) Operators manual Page 162

Operators manual
3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05
- 134 -
3.6 EDITING MESSAGES
Using the DISPB (SUB 41) function instruction enables the display of
any message on the CRT/MDI screen of the CNC. This section
describes how to create messages.
NOTE
Messages can be displayed and edited only when
the current programmer mode (offline/online) is
offline. To change the programmer mode to offline,
select [Ladder] - [Online/Offline].
3.6.1 Procedure

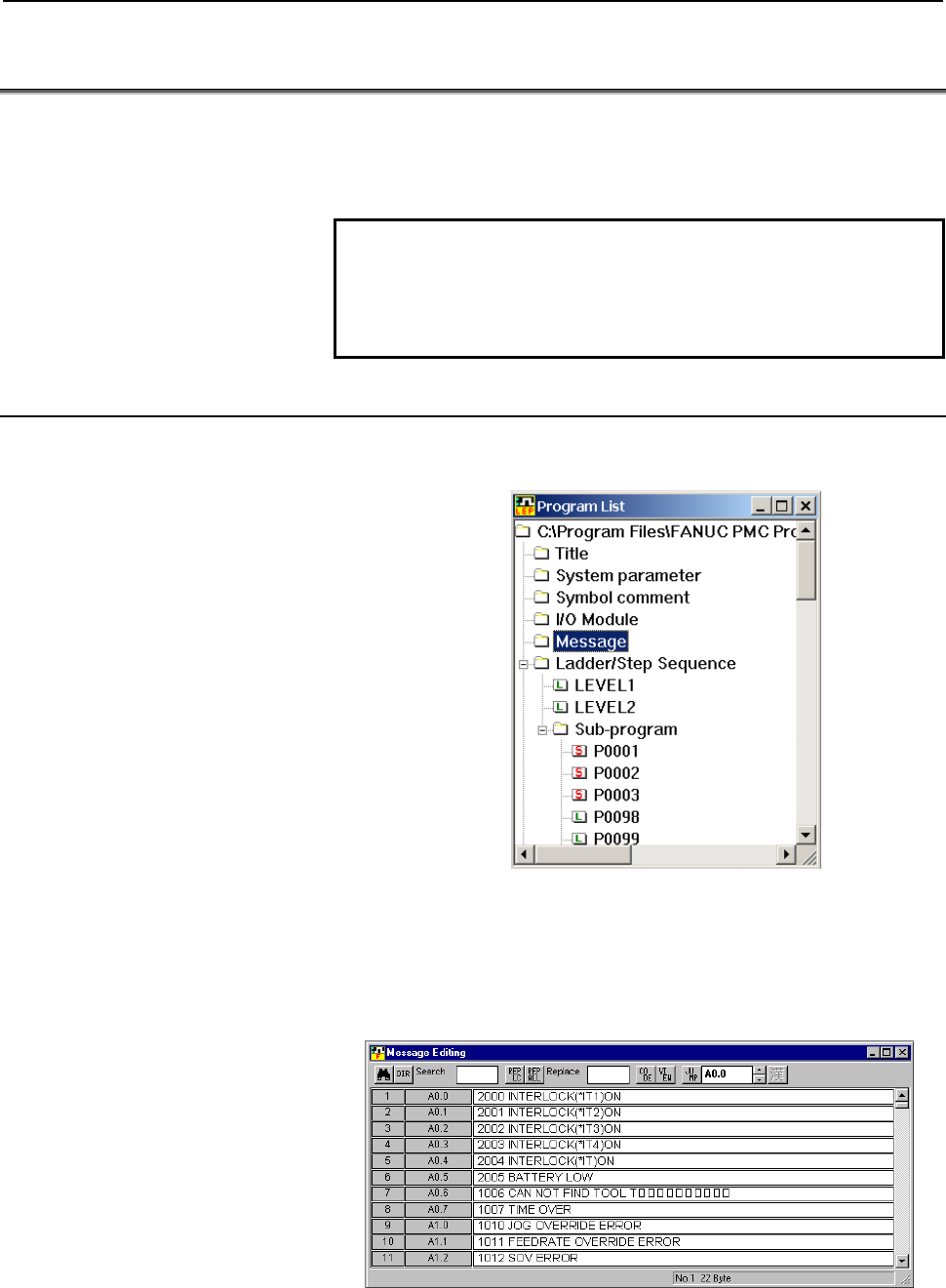

1 Double-click the <Message> item on the [Program List] screen.
The [Message Editing] Screen appears.
Fig. 3.6.1 (a)
2 Japanese-language input mode
2-1 Edit messages using the Japanese-language input function
of Windows. Enter kanji, kana, and half-size kana
characters.
Fig. 3.6.1 (b)
