B-63484EN/05 10.EXTENDED SYMBOL/COMMENT FUNCTION

- 335 -

10.2.2 Context Menu

Right-click the [Display selection window] screen. The following

context menu appears.

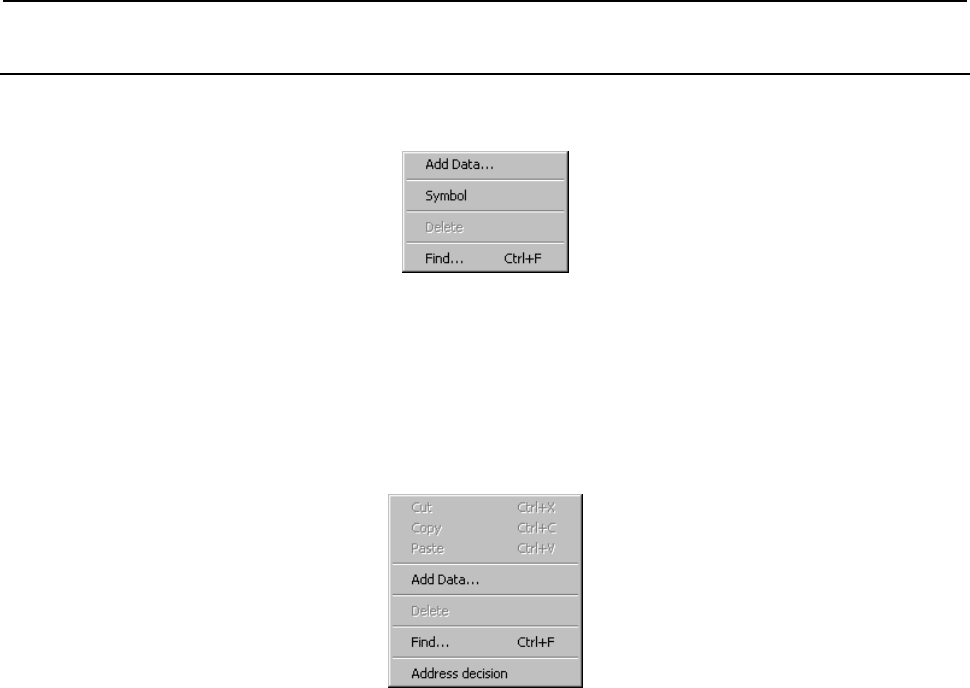

Fig. 10.2.2 (a)

Add Data... Display [Add Data] screen

Symbol Display the symbol which is set in P address of sub program

Delete Delete all symbols of [Symbol/comment display window]

Find... Find [Symbol/comment display window]

Right-click the [Symbol comment display window]. The following

context menu appears.

Fig. 10.2.2 (b)

Cut Move selected data to the clipboard

Copy Copy selected data to the clipboard

Paste Copy from the clipboard additionally

Add Data... Display [Add Data] screen

Delete Delete all symbols of [Symbol/comment display window]

Find... Find [Symbol/comment display window]

Address

decision

Decide the address that is automatically assigned.

Decide the assigned address to delete the * mark which

places in the top of the address.
