Open CNC (Ladder Editing Package, Windows) Operators manual Page 357

Operators manual
B-63484EN/05 10.EXTENDED SYMBOL/COMMENT FUNCTION
- 329 -
10 EXTENDED SYMBOL/COMMENT
FUNCTION
The extended symbol/comment function allows you to use the
following features.
• Increase in the symbol/comment character count
• Ladder edit by using symbol.
• Symbol effective in each sub-program
• Symbol type setting
• Automatic assignment function for R,D,E address.

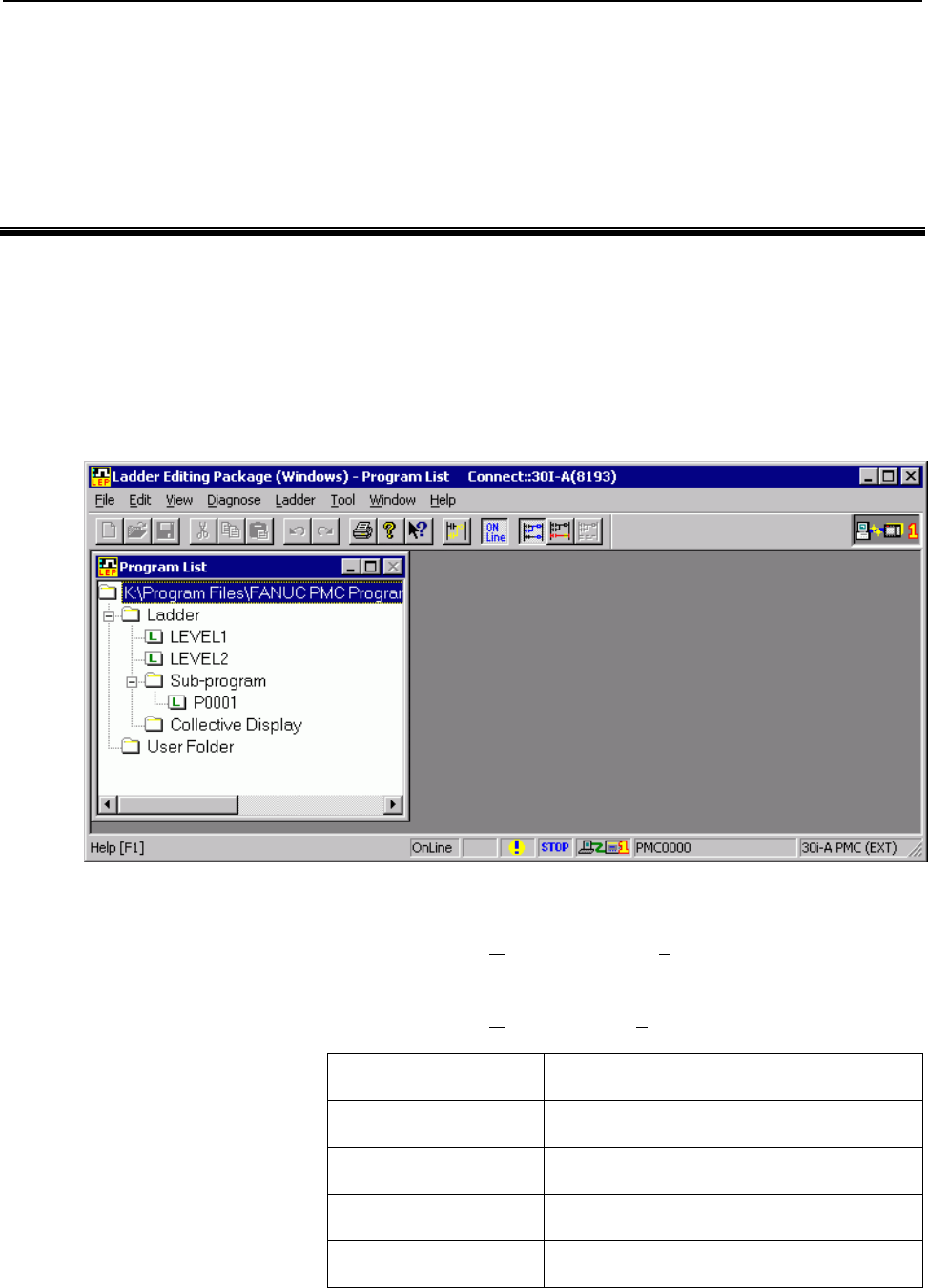

Fig. 10
How to hide the [Program List] screen.
Check [View(V
)] - [Program List(P)].
How to confirm the type of ladder program which is being edited.
Check [View(V
)] - [Status Bar(P)].
PMC type is displayed in the lower right corner of the screen.
Display of right lower
corner
Type
30i-A PMC (EXT)
Extended function is available to 1st path PMC
for 30i-A
30i-A PMC(2ND) (EXT)
Extended function is available to 2nd path
PMC for 30i-A
30i-A PMC(3RD) (EXT)
Extended function is available to 3rd path PMC
for 30i-A
30i-A PMC(DCS) (EXT)
Extended function is available to dual check
safety PMC for 30i-A
(EXT) means extended function
