2.BASICS B-63484EN/05

- 16 -

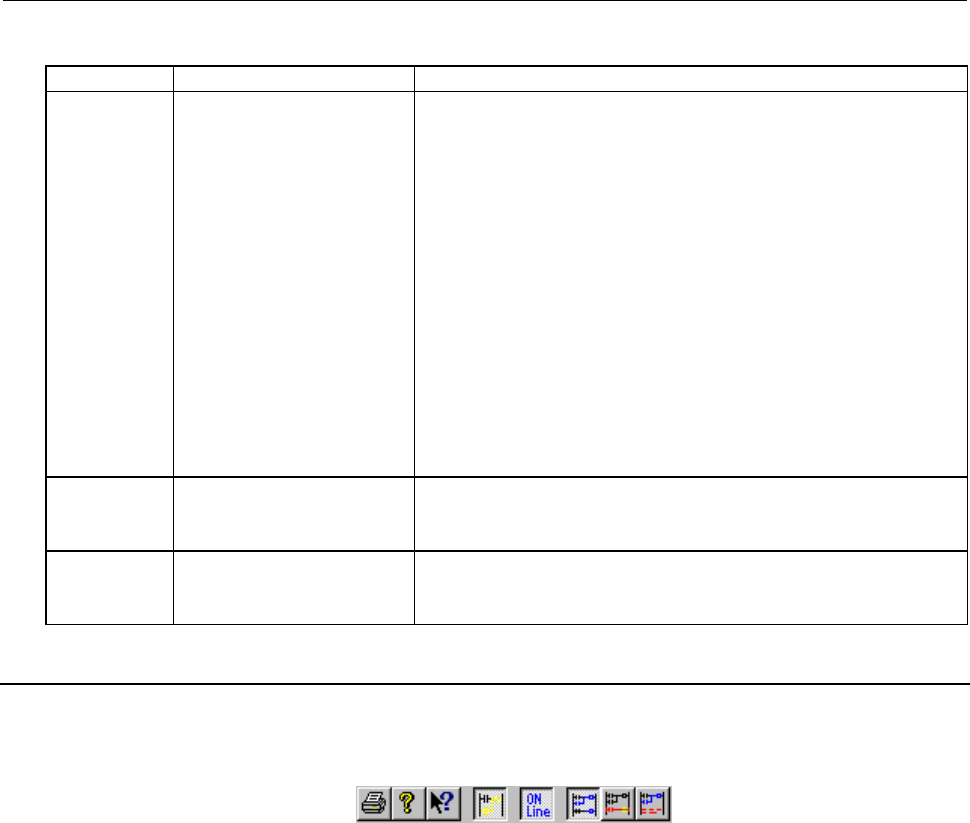

Table 2.3

Main menu Submenu Reference chapter, section, or subsection

Tool Mnemonic Convert

Source Program Convert

Data Conversion

Data File→LAD File

Data File←LAD File

Compile

Decompile

Communication

Device Select

Load from PMC

Store to PMC

Clear PMC Memory

I/O Link Restart

Backup

Program Run/Stop

Option

6.1 CONVERTING SOURCE PROGRAMS TO MNEMONIC FILES

6.2 CONVERTING MNEMONIC FILES TO SOURCE PROGRAMS

11 CONVERTING SEQUENCE PROGRAMS

11.1 CONVERSION FROM DOS FANUC LADDER-II

11.2 CONVERSION TO DOS FANUC LADDER-II

5.1 COMPILATION

5.2 DECOMPILATION

7.1 SETTING COMMUNICATION

7.1, 7.2 LOADING SEQUENCE PROGRAMS FROM PMC

7.3, 7.4 STORING SEQUENCE PROGRAMS IN PMC

9.8 CLEARING PMC AREAS

9.9 ACTIVATING THE I/O LINK

7.6 WRITING SEQUENCE PROGRAMS INTO F-ROM

8 RUNNING AND STOPPING SEQUENCE PROGRAMS

Window Cascade

Tile

Arrange Icons

Help Topic

Help

About version information

2.3.2 Toolbar

The toolbar contains a set of buttons used for file operations and

editing.

<1><2><3> <4> <5> <6><7><8>

Fig. 2.3.2

<1> Print

Prints a program.

<2> About version information

Displays version information.

<3> Context-sensitive help

Displays the help text for the portion specified with the mouse.

<4> Run/stop program

Runs or stop a Ladder program.

<5> Online/Offline

Switches the system between online and offline modes.

<6>, <7> Ladder monitor, Online editing

Switches the system between ladder monitor and online editing.

<8> Signal trigger stop

Runs the signal trigger stop function.
