Open CNC (Ladder Editing Package, Windows) Operators manual Page 287

Operators manual
B-63484EN/05 7.INPUT/OUTPUT
- 259 -
7.3 LOADING SEQUENCE PROGRAMS FROM THE PMC
(DURING CONNECTION WITH THE PMC)
7.3.1 Procedure

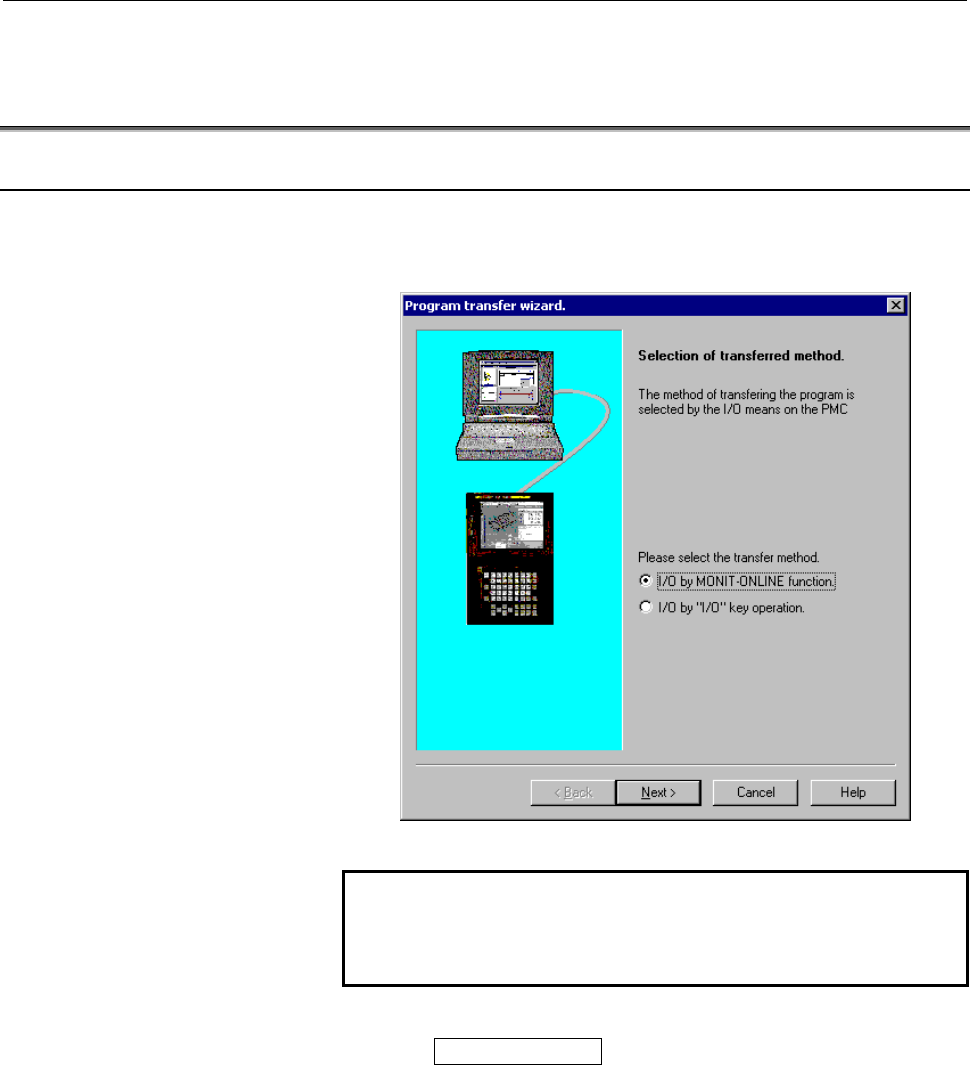

1 Select [Tool] - [Load from PMC].
The [Program transfer wizard Selection of transferred method]
screen appears.
Fig. 7.3.1 (a)
NOTE
When connection is not established, the
[Communication] screen appears. Then, establish
connection.
1-1 Set data.
Content of transfer
As transfer information, a selection can be made from
Ladder, Language program, and PMC Parameter.
When transferring PMC parameters, enter a transfer
destination file name in [Selection of]. The initial
setting specifies that PMC parameters are transferred
to PMC_PRM.PRM in a user file folder.
For a user file folder, see Subsection 3.1.3, "Work
Folders and Online Program Files."
A PMC parameter file once transferred to a user file
folder can be restored by using the export function.
For the export function, see Section 3.15,
"EXPORTING PROGRAMS."
