B-63484EN/05 9.DIAGNOSIS

- 299 -

9.3.6.2 Procedure

1 Check the setting parameters you want to make valid.

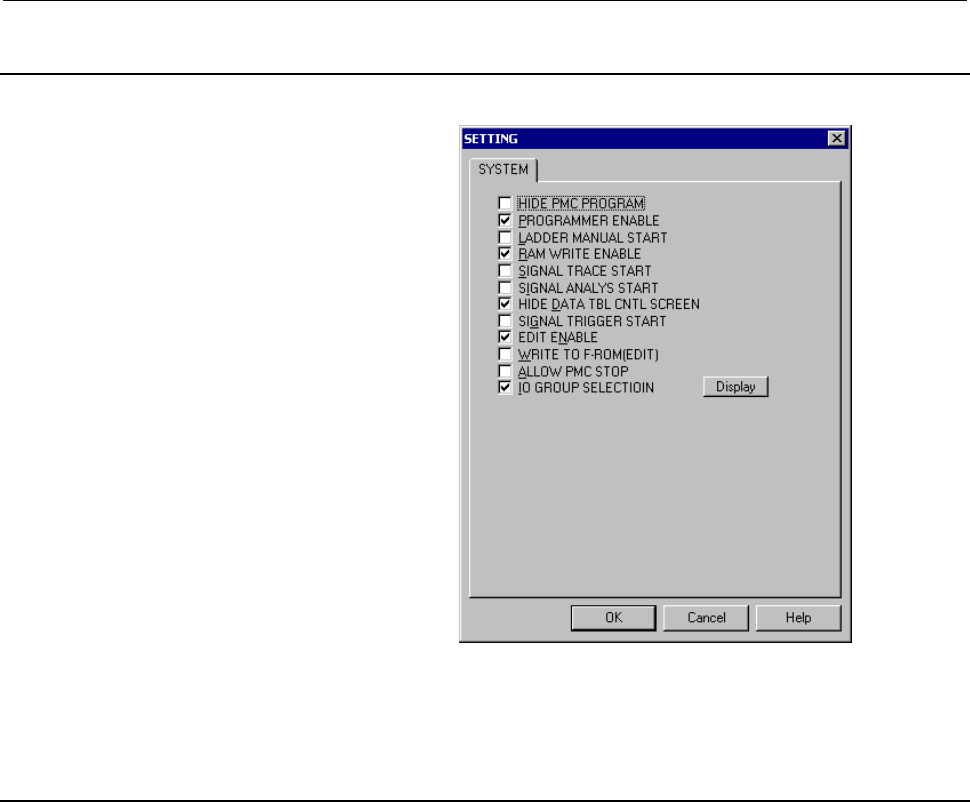

Fig. 9.3.6.2

2 To save the changes, click the <OK> buttons.

To cancel the changes, click the <Cancel> button.

9.3.6.3 Setting items

• HIDE PMC PROGRAM (PMC-SB7: K900.0, PMC-SA1: K17.0)

Not checked : Displays sequence programs.

Checked : Hides sequence programs.

• PROGRAMMER ENABLE (PMC-SB7: K900.1, PMC-SA1:

K17.1)

Not checked : Disables built-in programmer functions.

Checked : Enables built-in programmer functions.

• LADDER MANUAL START (PMC-SB7: K900.2, PMC-SA1:

K17.2)

Not checked : After the power is turned on, sequence programs

will be automatically executed.

Checked : Sequence programs will be executed with the

sequence program execution soft key.

• RAM WRITE ENABLE (PMC-SB7: K900.4, PMC-SA1: K17.4)

Not checked : Disables the forcing and overwrite functions.

Checked : Enables the forcing and overwrite functions.
