3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05
- 102 -
NOTE
1 The menu item can not be selected if there is an
error net.
2 It is necessary to display and select the window of
the ladder.

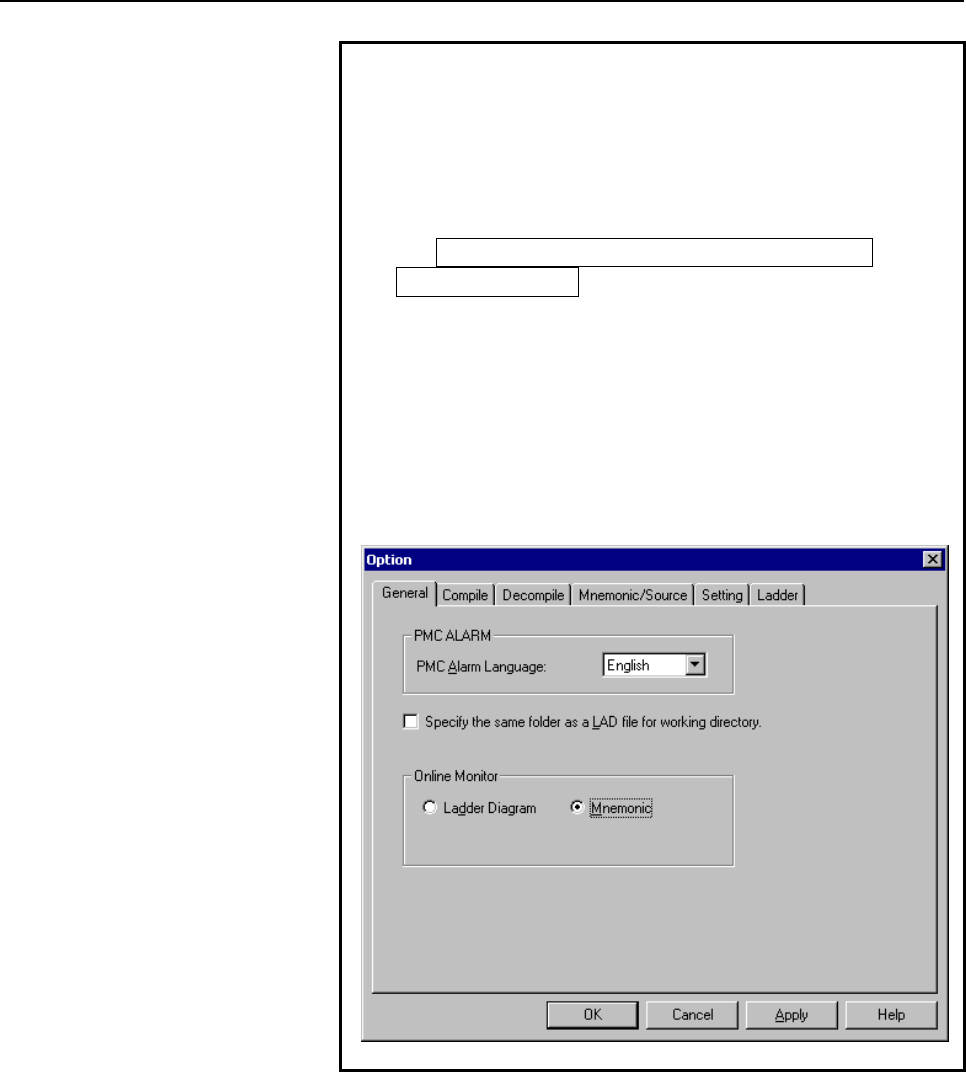

3 As to the storing folder of the text file,
You can choose the default of the storing folder by
the Specify the same folder as a LAD file for
working directory in the [General] tab of the option.
(select the [Tool] - [Option...])
Checked .............. The same folder as the LAD file.
(Initial value) It is useful when saving at the
same folder as the LAD file.
Not checked......... The folder stored previously.
It is useful when saving to a
specified folder each time.
