6.MNEMONIC EDITING B-63484EN/05

- 222 -

Operation

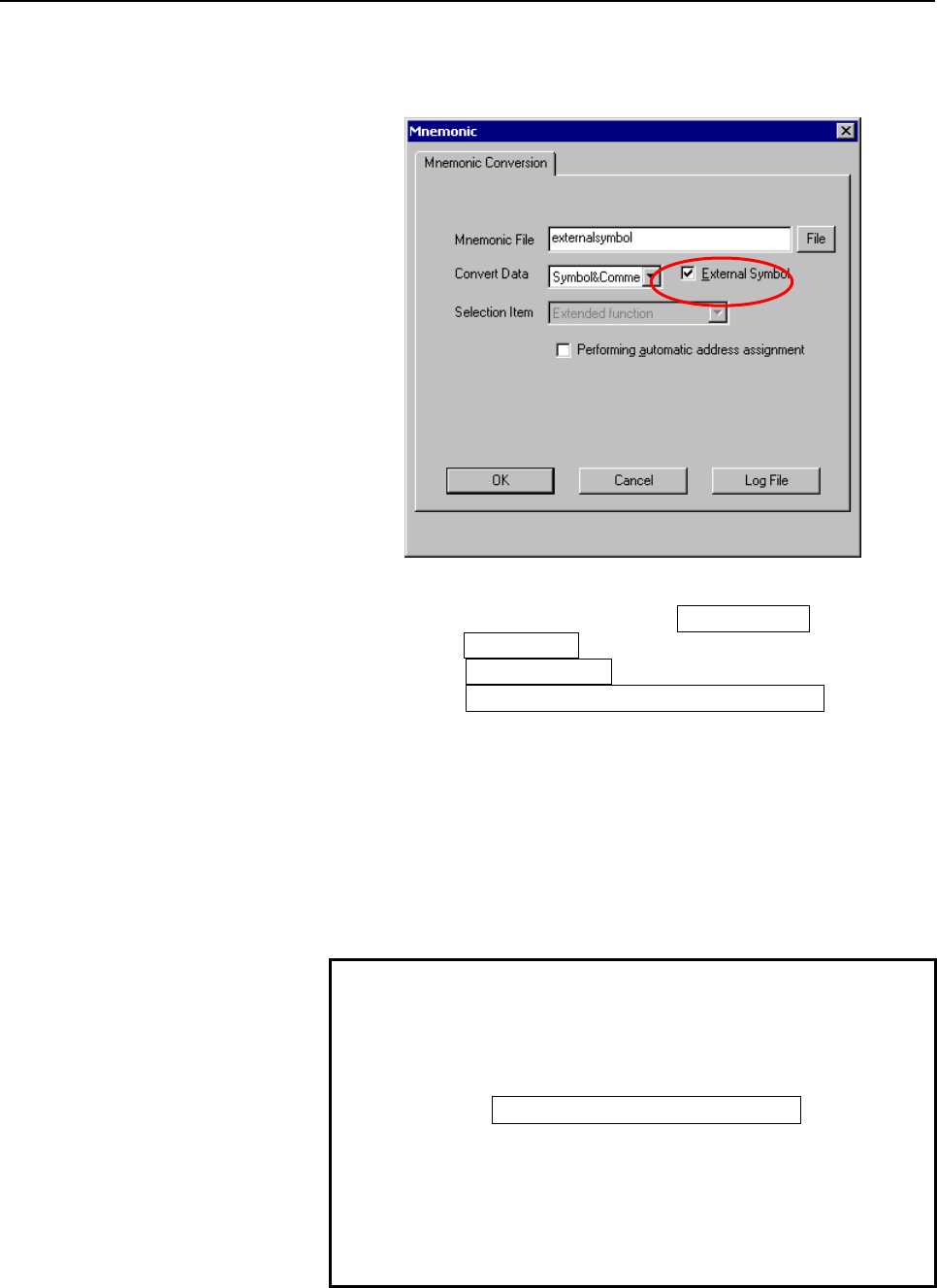

1 Select [Tool]-[Mnemonic Convert...]. Then, the [Mnemonic]

screen appears.

Fig 6.1.1(a)

2 Input the file name to output in the Mnemonic File.

3 Select the Convert Data. Select the "Symbol&Comment".

4 Check the External Symbol.

5 Check the Performing automatic address assignment if needed..

This item appears when the PMC model is the extended function.

Check : The address of the symbol is assigned

automatically. Beforehand, you need to

specify the assignment address range on

the system parameter screen.

No check (Default) : The address is not assigned automatically

and outputted with the address character

only.

6 Click the <OK> button.

NOTE

1 When a white-space character is contained in the

symbol, it can be replaced with the specified

character. Select [Tool] – [Option...]. Click

[Mnemonic/Source] tag. Input the character to

replace in Converting to a mnemonic file. Default is

_(underbar).

2 L address of LABEL type is always automatically

assigned regardless of this setting.

3 Refer to Appendix E "The data format of the

external symbol file" for the data format of the

external symbol file.
