Open CNC (Ladder Editing Package, Windows) Operators manual Page 280

Operators manual
7.INPUT/OUTPUT B-63484EN/05
- 252 -
7.2 LOADING SEQUENCE PROGRAMS FROM THE PMC
(DURING DISCONNECTION WITH THE PMC)
7.2.1 Procedure
1 Select [Tool] - [Load from PMC].

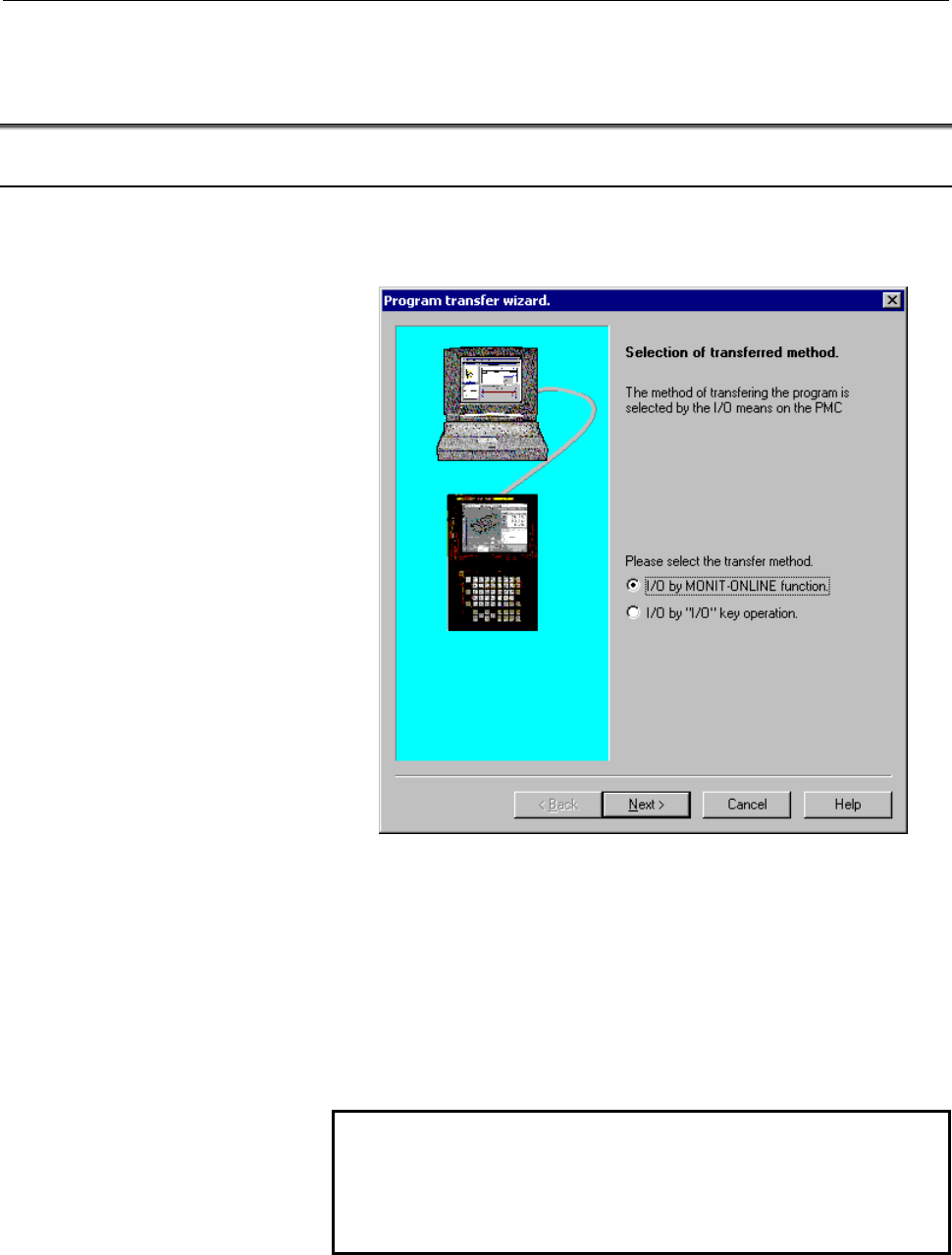

The [Program transfer wizard Selection of transferred method]
screen appears.
Fig. 7.2.1 (a)
1-1 Select a transfer method.
• <I/O by MONIT-ONLINE function>
A communication function by an online monitor is
used.
• <I/O by “I/O” key operation>
Input or output is performed by the HOST operation of
an I/O function.
NOTE
On PMC-SB7 and 30i/31i/32i-A PMC, this screen
does not appear. On PMC-SB7 and 30i/31i/32i-A
PMC, only <I/O by MONIT-ONLINE function> is
available.
