4. Select [Selection Item] The following items can be selected.

Table 6.1(b)

P-G Compatible  Converts data to data in the format output by P-G.

 Converts Japanese message to code-formatted data.

Full Options  Converts comments in which kanji characters are included in the comment

data.

 Converts data in which the symbol and comment for an address as well as the

function name of a function are used as comments.

 Converts data that has an instruction part, operand part, and comment part.

 Converts Japanese message to Japanese-formatted data.

Label/Subprogram  Converts data with the jump addresses (labels) of functions (JMP, JMPC,

CALL, SP commands) used in a subprogram highlighted . However, the step

number of mnemonic data after conversion is different from the other

settings.(The functions part used in a subprogram is different.)

 Converts Japanese messages to Japanese-formatted data.

Extended function  Converts to the format which corresponds to an automatic assignment of

address.

 Converts to the format which corresponds to a global symbol and local symbol.

 Converts Japanese messages to Japanese-formatted data.

5. [External Symbol]

This check box appears when convert data is Symbol & Comment.

Check when you output the external symbol file.

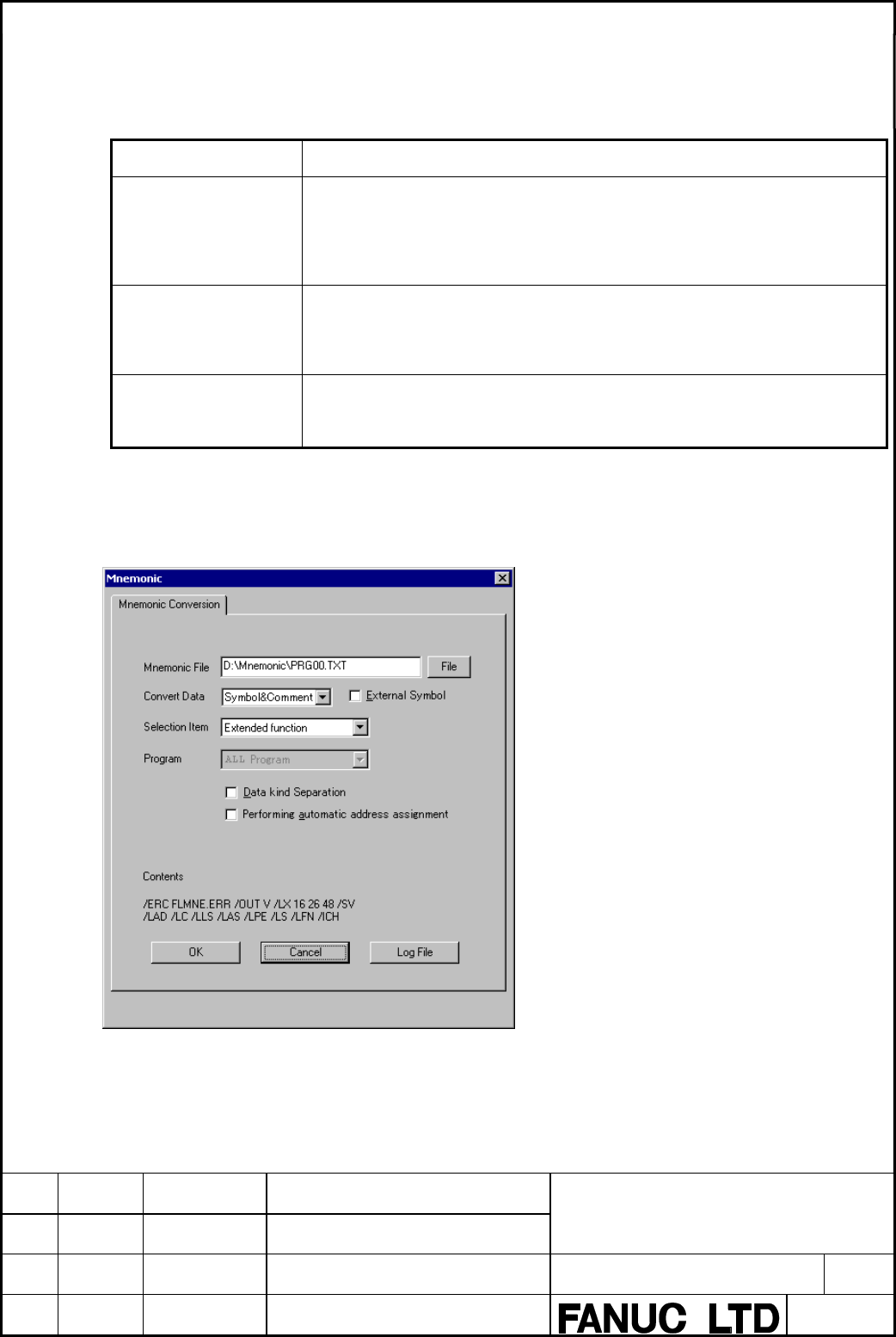

Fig 6.1(b)
