B-63324EN-1/03 OPERATION 3.MANUAL OPERATION

- 83 -

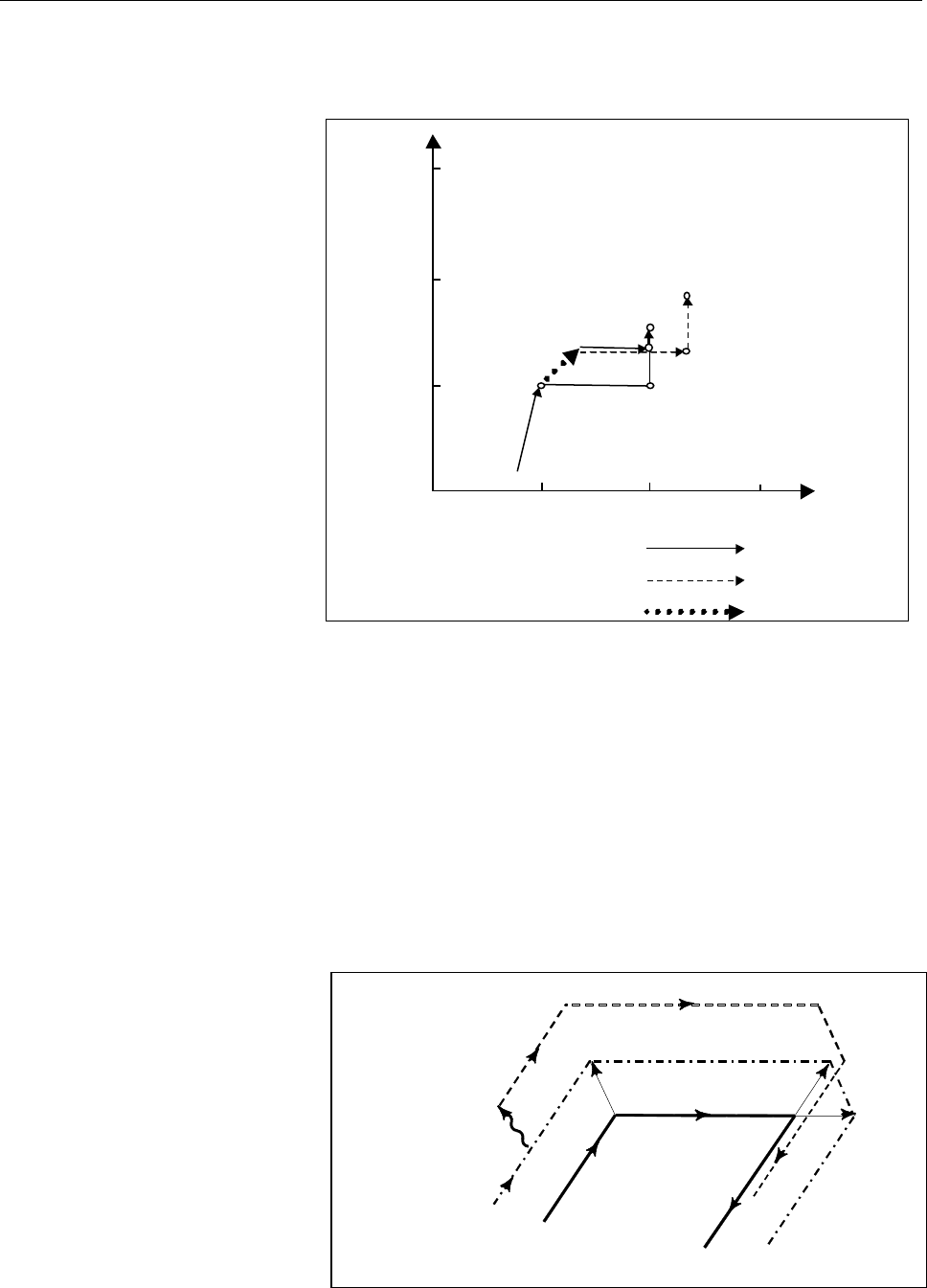

- When a movement command in the next block is only one axis

When there is only one axis in the following command, only the

commanded axis returns.

Sw itc h ON

Sw itc h OFF

Manual operation

(100.0 , 100.0)

(200.0 , 150.0)

100.0 200.0 300.0

100.0

200.0

300.0

(200.0 , 100.0)

Pr ogr am

N1 G90 G01 X100. Y100. F500 ;

N2 X200.0 ;

N3 Y150.0 ;

- When the next move block is an incremental

When the following commands are incremental commands, operation

is the same as when the switch is OFF.

- Manual operation during cutter compensation

When the switch is OFF

After manual operation is performed with the switch OFF during cutter

compensation, automatic operation is restarted then the tool moves

parallel to the movement that would have been performed if manual

movement had not been performed. The amount of separation equals to

the amount that was performed manually.

Manual operation

Cutter path

Programmed path

Cutter path after

manual operation
