B-63324EN-1/03 OPERATION 4.AUTOMATIC OPERATION

- 149 -

Procedure2 Retract

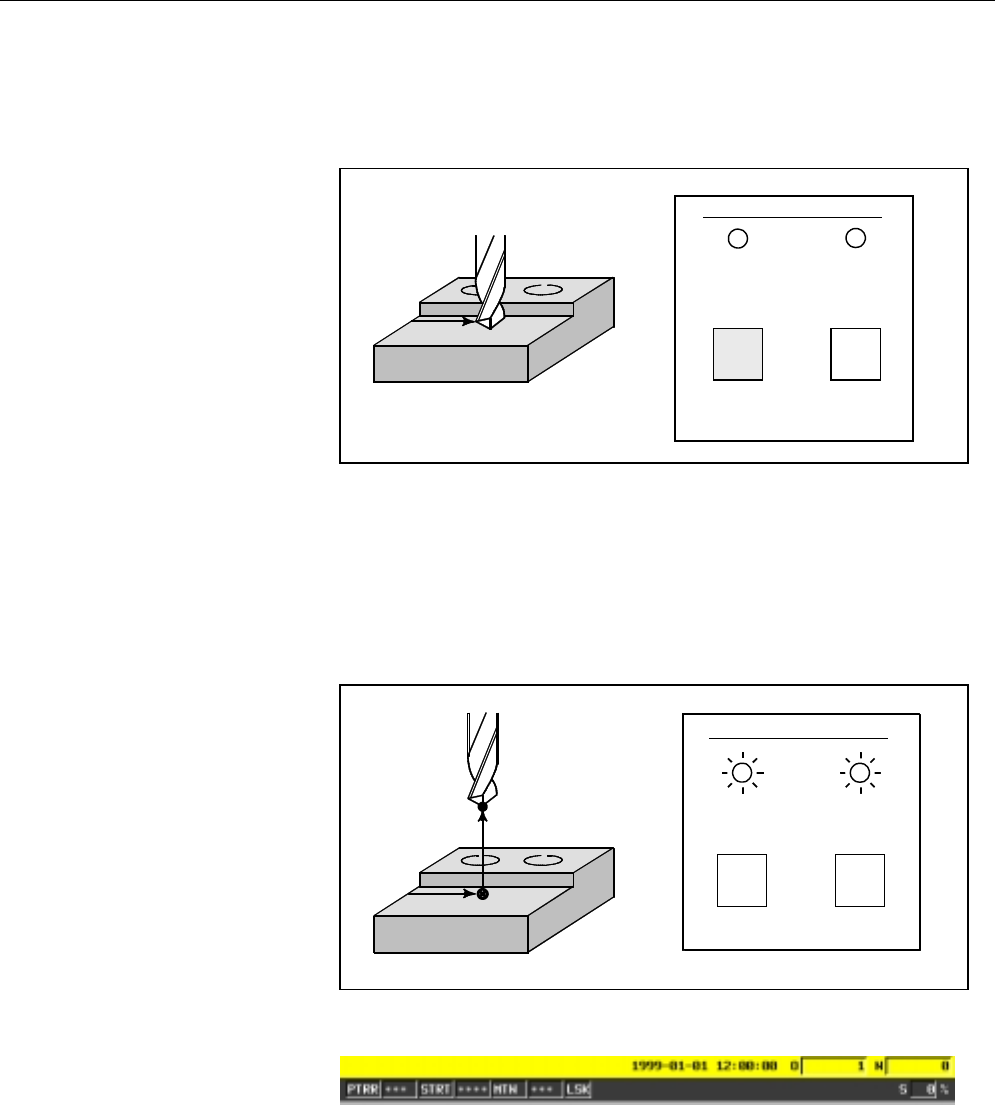

Suppose that the TOOL WITHDRAW switch on the machine operator’s

panel is turned on when the tool is positioned at point A during execution

of the N30 block.

Next, the tool withdrawal mode is set and the TOOL BEING

WITHDRAWN LED goes on. At this time, automatic operation is

temporarily halted. The tool is then retracted by the programmed distance.

If point A is the end point of the block, retraction is performed after

automatic operation is stopped. Retraction is based on linear interpolation.

The dry run feedrate is used for retraction. Upon completion of retraction,

the RETRACT POSITION LED on the operator’s panel goes on.

During retraction, the screen displays “PTRR” and “STRT”.

- “PTRR” blinks in the field for indicating states such as the program

editing status.

- “STRT” is displayed in the automatic operation status field.

- “MTN” is displayed in the field for indicating status such as

movement along an axis.

N30

Machine operator’s panel

TOOL

BEING

WITH-

DRAWN

RETRAC-

TION

POSITION

TOOL

WITH-

TOOL

RETURN

N30

Point E

Machine operator’s panel

TOOL BE-

ING WITH-

DRAWN

RETRAC-

TION

POSITION

TOOL

WITH

TOOL

RETURN
