4.AUTOMATIC OPERATION OPERATION B-63324EN-1/03

- 164 -

- Forward return movement → Forward movement

When the tool completes a forward return movement up to the block where

reverse movement was started, the tool automatically resumes forward

movement. Programmed commands are read and program execution is

continued. No particular operation is required to resume forward

movement.

When tool movement switches from forward return movement to forward

movement, the display of RTRY (Re-TRY) in the lower-right corner of the

CRT screen disappears.

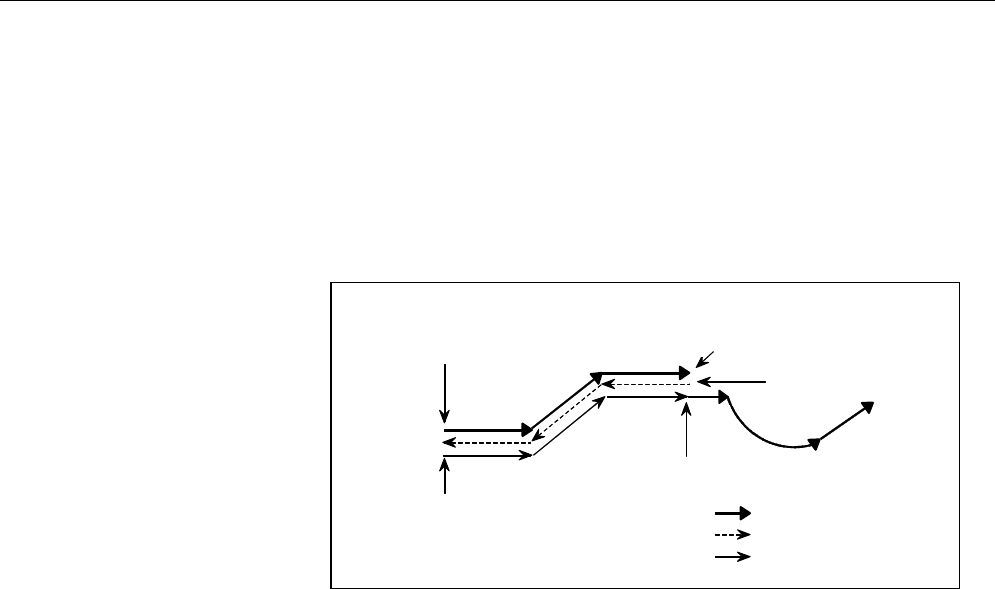

Fig. 4.11 (h)

If the tool moves in the reverse direction after a feed hold stop, the tool

stops forward return movement at the position of the feed hold stop, then

resumes forward movement. If the tool moves in the reverse direction after

a single block stop, the tool also stops forward return movement at the

position of the single block stop.

Explanation

- Forward reverse movement

In automatic operation, a program is usually executed in the order that

commands are specified. This mode of execution is referred to as forward

movement. The retrace function can execute in reverse, program blocks

that have already been executed. This mode of execution is referred to as

reverse movement. In reverse movement, the tool can retrace the tool path

followed by forward movement.

A program can be executed in the reverse direction only for those blocks

that have already been executed in the forward direction.

The tool can perform reverse movement one block at a time when the

single block

mode is set.

- Status display

During reverse movement, the letters "RVRS" blink on screen. During

forward return movement, the letters "TRRY" blink on screen to inform

the operator that forward return movement is in operation. The "RTRY"

display continues until the tool returns to the block where reverse

movement was started to start regular operation, in other words, to the

position where forward return movement is enabled.

Cycle start

(forward movement started)

Feed hold stop

Reverse movement signal=1,cycle start

Reverse movement

started

Forward movement

Reverse movement

Forward returnmovemnt

Forward movement started

Forward return movement started
