Series 15i/150i - MA (Operation) Operators manual Page 368

Operators manual
B-63324EN-1/03 OPERATION 9.SETTING AND DISPLAYING DATA
- 347 -

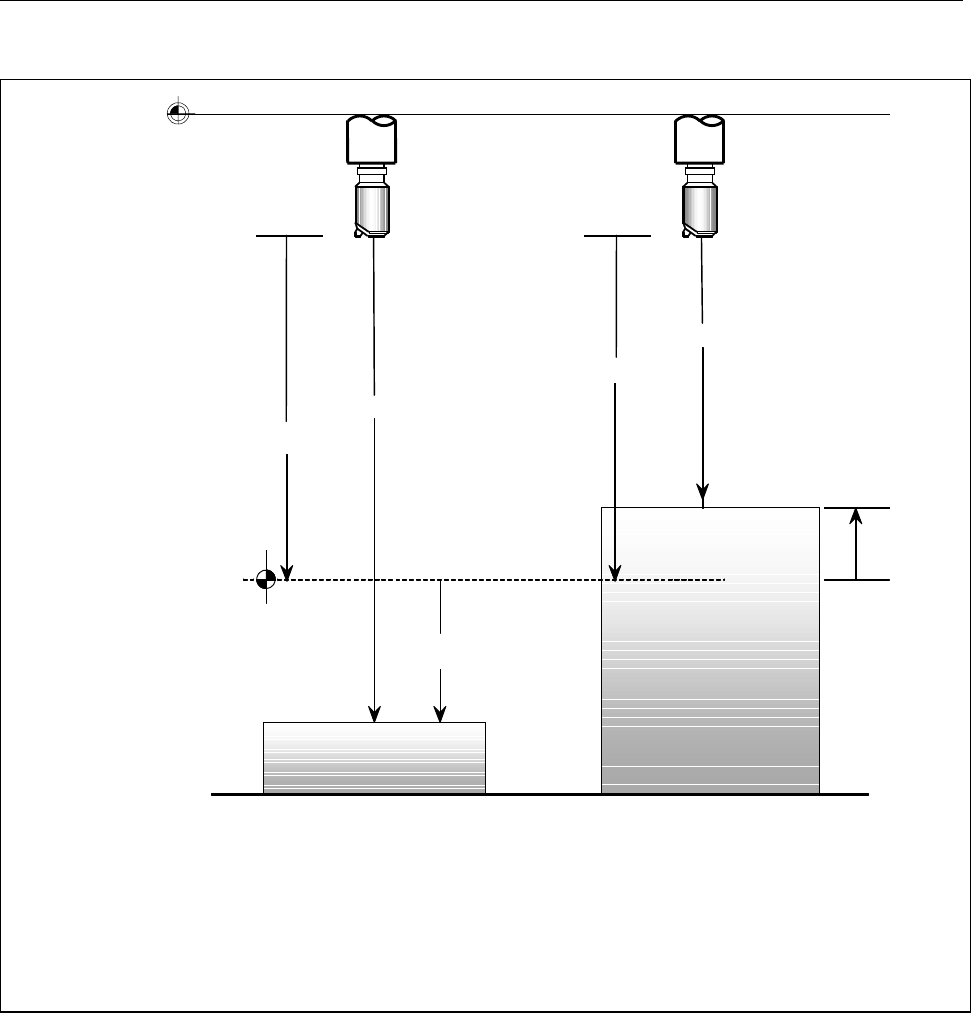

The reference tool in method 2 is a tool whose tip is positioned to the
origin of the workpiece coordinate system while the machine is
positioned to the machine zero point. Generally, the tool length offset
must be adjusted according to the workpiece. The need to adjust the
tool length offset for a new workpiece can be eliminated by setting the
difference between the origin of the workpiece coordinate system of
the new workpiece and the origin of the workpiece coordinate system
used to measure the tool length offset as the workpiece origin offset of
any of G54 to G59. To define the tool length offset using this method
involves setting the workpiece origin offset as the tool length offset for
each tool.
Workpiece
(Reference measurement surface)
Measurement surface
Machine zero point
Zm
OFSL
Zm
OFSL
Hm
Origin of workpiece coordinate
Hm
Reference block
L: Distance between the tool tip position of the reference tool and the reference measurement surface (= 0)
Hm: Distance between the reference measurement surface and the actual measurement surface
Zm: Distance between the measurement surface and the tool tip of the target tool on the machine zero point
OFSL: Tool length offset (OFSL = Zm - Hm - L)
Machine table
Measurement surface
Tool
T01
Tool
T01
Machine table
