3.MANUAL OPERATION OPERATION B-63324EN-1/03

- 98 -

Movement amount of linear axis

Xp=L× [sin(A+Ap)×sin(C+Cp)-sin(A)×sin(C)]

Yp=L× [sin(A+Ap)×cos(C+Cp)-sin(A)×cos(C)]

Zp=L× [cos(A+Ap)-cos(A)]

Angular displacement of the rotation axis

Ap=Hp or Cp=Hp

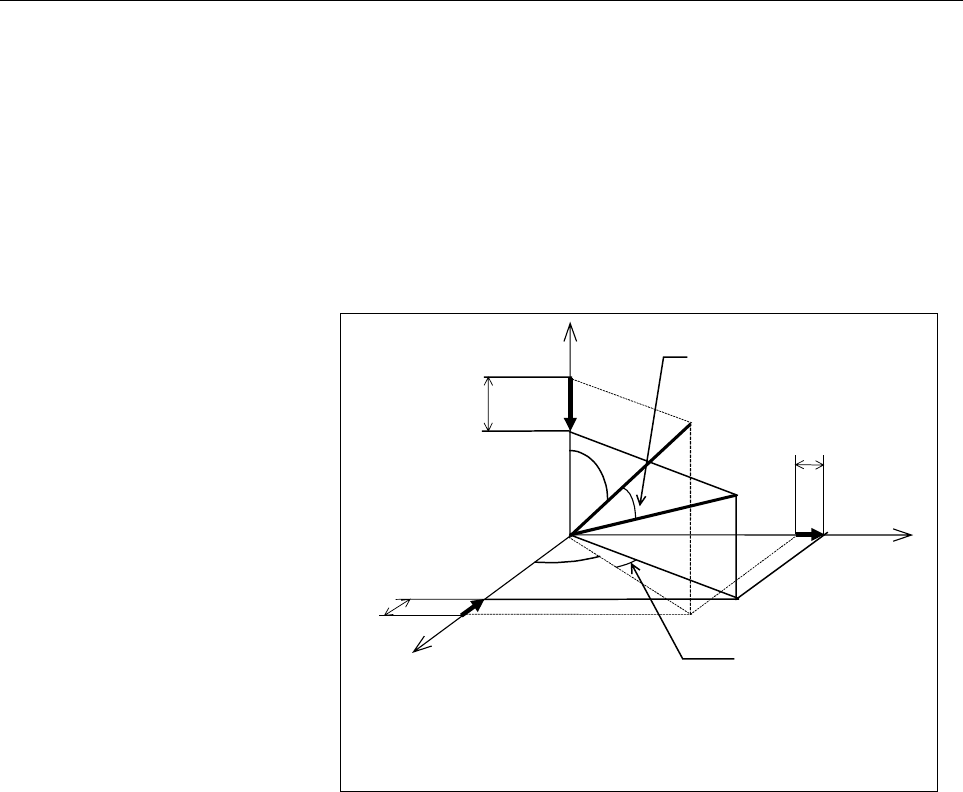

- Rotation axes A and B (with the X-axis representing the tool axis)

T1 :

Tool rotation center position

T2 :

Tool rotation center position after movement

Ap, Bp : Angular displacement of the rotation axis

Movement amount of linear axis

Xp=L× [cos(B+Bp)-cos(B)]

Yp=L× [sin(B+Bp)×sin(A+Ap)-sin(B)×sin(A)]

Zp=-L× [sin(B+Bp)×cos(A+Ap)-sin(B)×cos(A)]

Angular displacement of the rotation axis

Ap=Hp or Bp=Hp
