B-63324EN-1/03 OPERATION 9.SETTING AND DISPLAYING DATA

- 369 -

9.13 DISPLAYING AND SETTING THE SOFTWARE

OPERATOR’S PANEL

MDI panel operations can substitute for the functions of switches on

the machine operator’s panel.

For example, mode selection and jog feed override selection can be

made by operations on the MDI panel, thus allowing the corresponding

switches to be eliminated from the machine operator’s panel.

In addition, jog feed can be performed using the numeric keys.

Displaying the software operator’s panel

Follow the procedure described in Section II-2.3 or II-2.5, "Offset

Setting" to display the software operator’s panel screen.

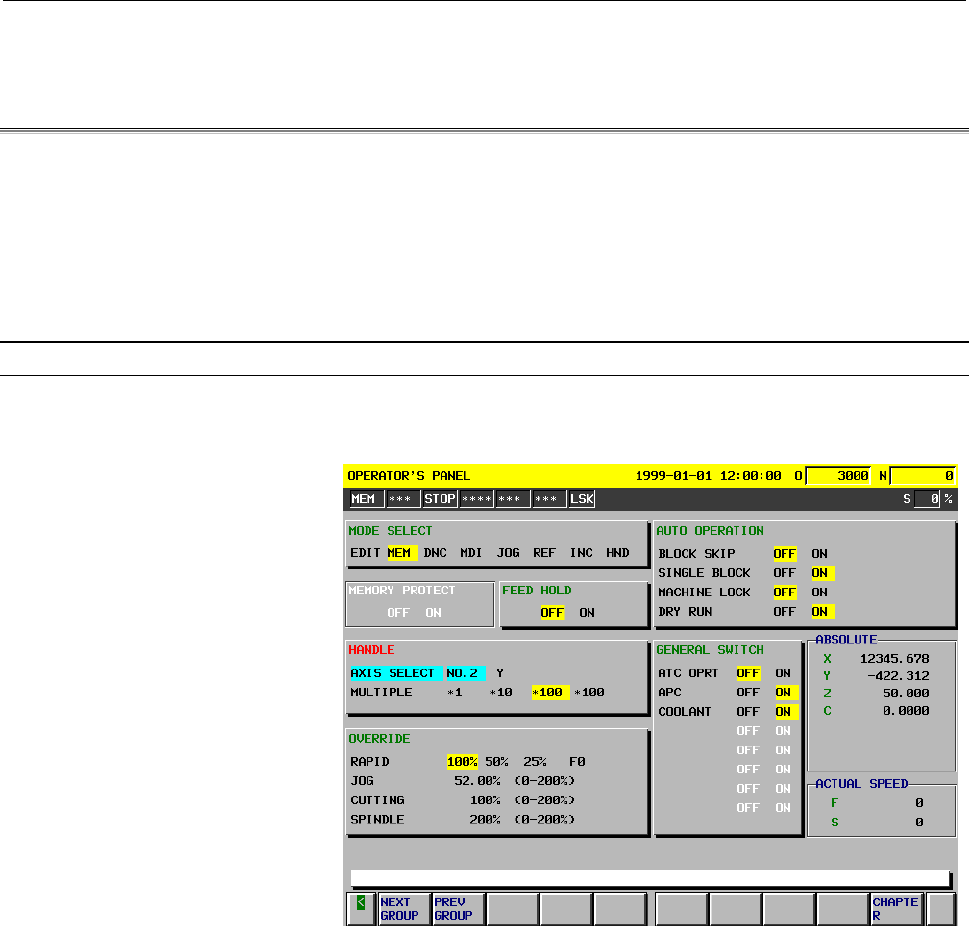

Fig.9.13 (a) Software Operator’s Panel Screen

The switches are divided into seven groups. Those groups and switches

whose names are displayed in white cannot be used.

- Mode selection

Select operation mode.

- Memory protection

Set the memory protection state.

- Feed hold

Set feed hold state.
