2.OPERATIONAL DEVICES OPERATION B-63324EN-1/03

- 52 -

2.5.6 Key Input and Input Buffer

2.5.6.1 Inserting characters

When an address and a numerical key are pressed, the character

corresponding to that key is input once into the key input buffer. The

contents of the key input buffer is displayed at the bottom of the screen.

A "_" is displayed at the end of the key input data indicating the input

position of the next character.

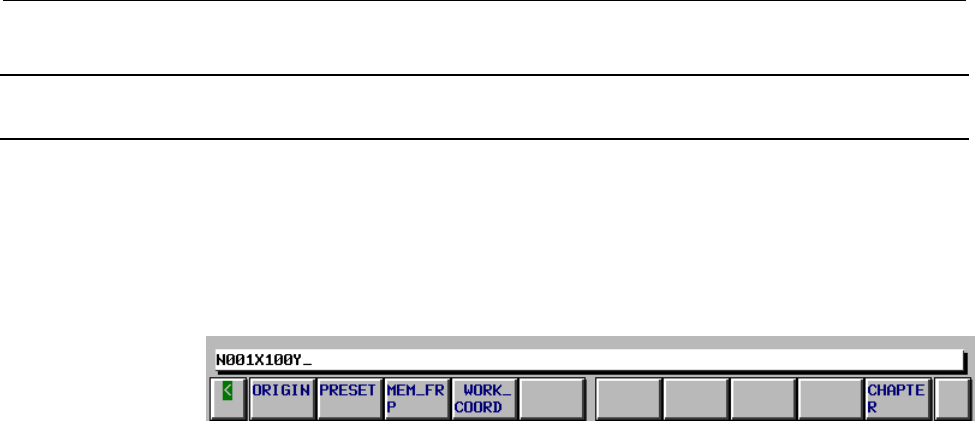

Fig.2.5.6 (a) Key Input Buffer Display

To input the lower character of the keys that have two

characters inscribed on them, first press the <SHIFT> key and then the

key in question.

When the <SHIFT> key is pressed, "_" indicating the next character

input position changes to "~". Now lowercase characters can be

entered (shift state).

When a character is input in shift status the shift status is

canceled. Furthermore, if the <SHIFT> key is pressed in shift status,

the shift status is canceled.

Example

Inserting G90 after N001 when "N001X100.0Y200.0F100.0;_" is

displayed as the contents of the key input buffer:

- Press cursor key ↑ to move the cursor to the following position:

N001_X100.0Y200.0F100.0;

- Key in G90.

N001G90_X100.0Y200.0F100.0;

- Press cursor key ↓ to move the cursor to the following position:

N001G90X100.0Y200.0F100.0;_
