B-63324EN-1/03 OPERATION 9.SETTING AND DISPLAYING DATA
- 375 -

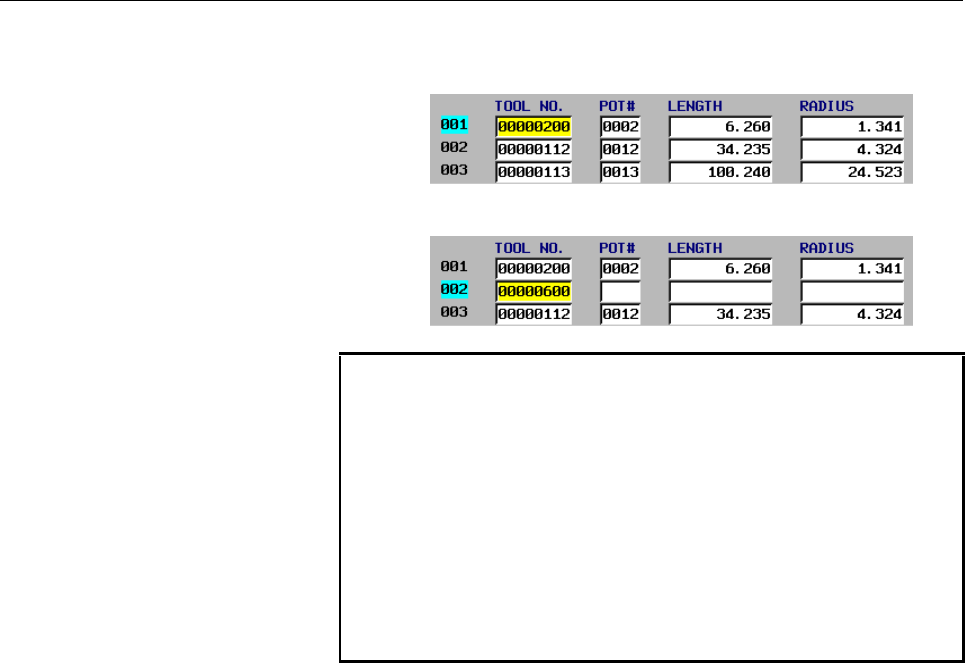

(1) Position the cursor to the data of display number 1, then enter
T600 and press [INSERT].
(2) Tool number 600 is added as tool number 2. The pot number,
length, and radius fields are blank.
NOTE
1 If 300 sets of data have already been registered, a
warning (excessive data count) is issued, disabling
data insertion.
2 If there are two or more identical tool numbers, a
warning (duplicate data) is issued. In this case, the
duplicate tool number or numbers are not set, and
only fields are reserved.
3 If a T is entered without specifying a tool number
(numeric value), no tool number is set, and only fields
are reserved.
Deleting tool offset data
(1 line)
Method 1
(1) Press the [DELETE] soft key.
(2) Key in the display number of the data you want to delete.
(3) Press the [EXEC] soft key.
Method 2
(1) Key in the display number of the data you want to delete.
(2) Press the [DELETE] soft key.
Method 3
(1) Position the cursor to the data you want to delete.
(2) Press the [DELETE] soft key.
(3) Press the [<CURSOR>] soft key.
Deleting tool offset data
(several lines)
Method 1
(1) Press the [DELETE] soft key.
(2) Key in the display number of the first line of data you want to
delete.
(3) Press the
[,(NUMBER)]
soft key.
(4) Key in the display number of the last line of data you want to
delete.
(5) Press the [EXEC] soft key.
Previous page
Next page
