7.ALARMS AND SELF DIAGNOSTC FUNCTIONS OPERATION B-63324EN-1/03

- 200 -

7.1 CHECKING WITH THE DIAGNOSIS SCREEN

The tool sometimes appears to stop when no alarm is indicated. In such

a case, the system status can be checked using the self diagnosis screen.

This screen can display a range of internal information. This chapter

explains the data to be checked when the tool appears to stop even

though no alarm is indicated.

Displaying the self diagnosis screen

Follow the procedure described in Section II-2.3 or 2.5, "System" to

display the self diagnosis screen.

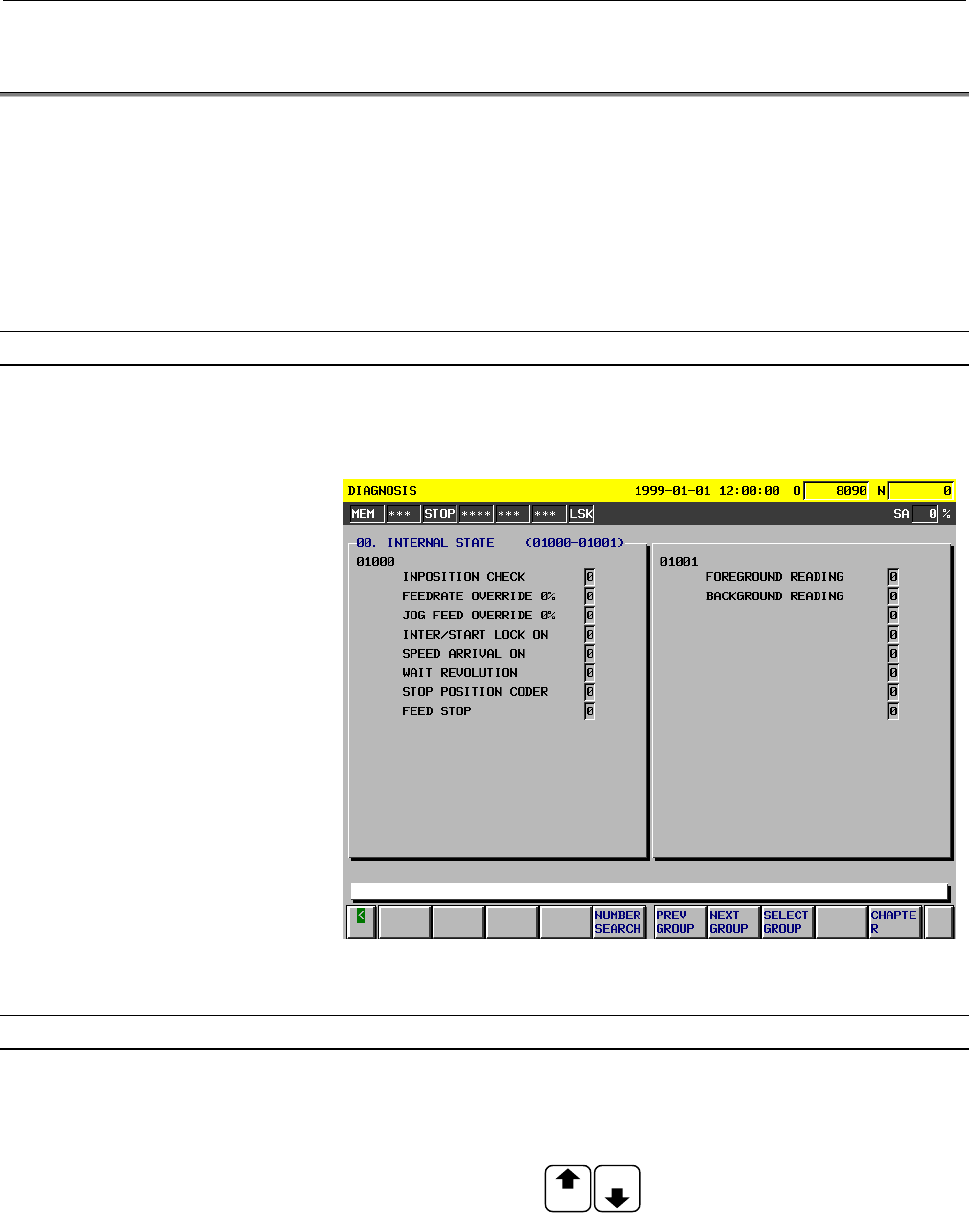

Fig.7.1 Self Diagnosis Screen

Selecting display data

Page change

The previous and next pages can be displayed by using the

page change keys .

PAGE
