Series 15i/150i - MA (Operation) Operators manual Page 196

Operators manual

Page of 628

/ 628

B-63324EN-1/03 OPERATION 4.AUTOMATIC OPERATION

- 175 -

Display Relation

Absolute coordinate

value

The absolute coordinate value does not change by

handle interruption.

Relative coordinate

value

The relative coordinate value changes by the handle

interruption amount.

Machine coordinate

value

The machine coordinate value changes by the handle

interruption amount.

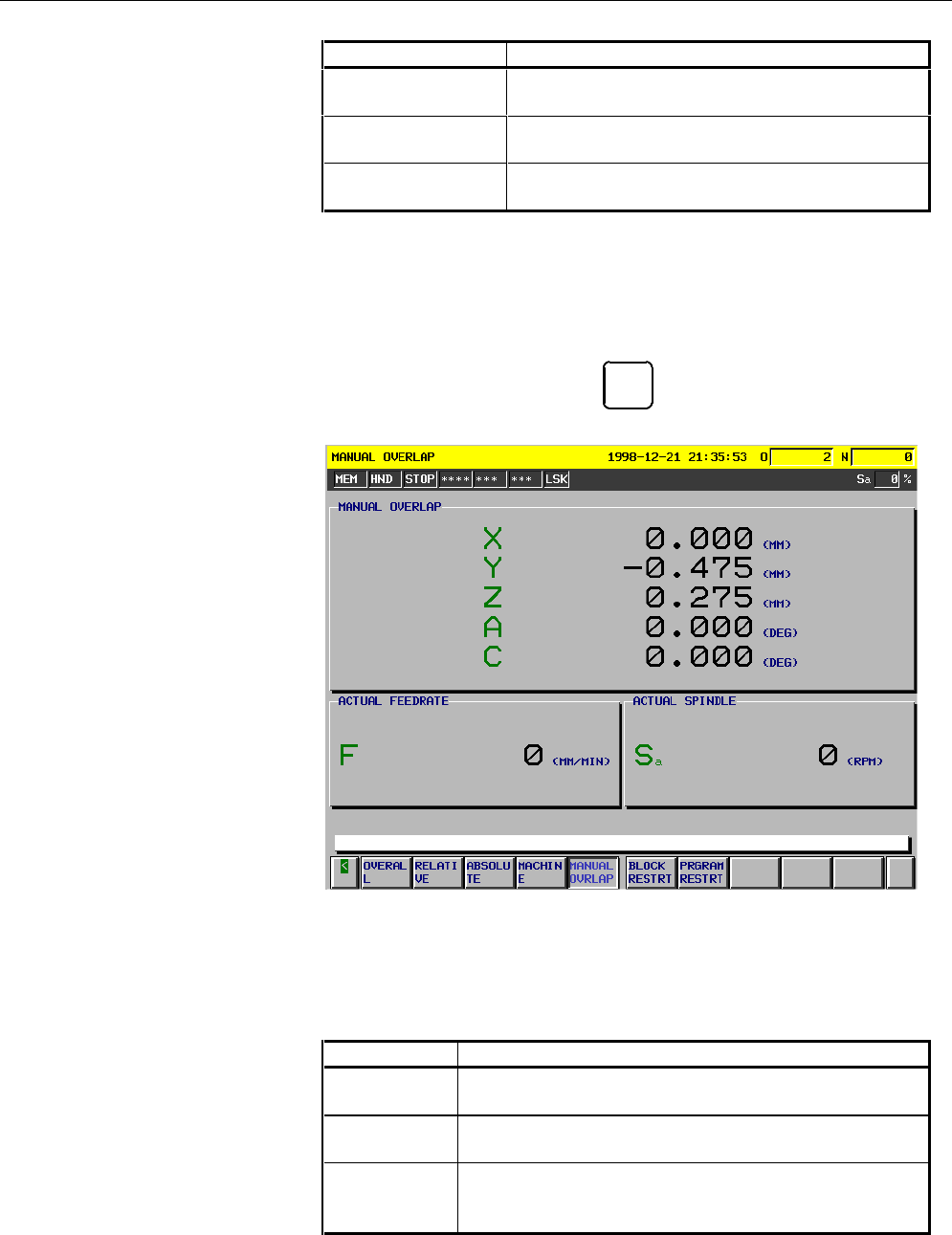

2 The amount of movement by manual handle interruption can be

displayed on the manual interruption amount screen in the current

position display.

If you press the chapter selection soft key after

pressing function key, the amount of movement

by handle interruption is displayed.

Fig. 4.13 (b)

- Relation with functions

The following table shows the relationship between handle interruption

movement and the functions:

Signal Relationship

Machine lock

The machine lock is effective. When the machine lock is ON,

handle interruption is ignored.

Interlock

The interlock is effective. When the interlock is ON, the

machine does not move.

Mirror image

Mirror image is ineffective. Even when the mirror image is ON,

handle interruption in the plus direction moves the tool in the

plus direction.

POS
