Series 15i/150i - MA (Operation) Operators manual Page 494

Operators manual
B-63324EN-1/03 OPERATION 10.DISPLAY
- 473 -
Graphic enlarge
A specified rectangular area can be drawn enlarged.
- Operation procedure
(1) Press the [ENLARGE] soft key.
A red and a yellow cursor are displayed in the middle of the screen,
and the soft key display changes.
(2) Use the [↑][↓][→][←] soft keys to move the two cursors to
diagonal points of a new rectangular graphic range.
Subsequently, tool path drawing is performed so that this
rectangular range is contained within the graphic area.
(3) Press the [SET END] soft key to end the procedure.
Then, press the [ERASE] soft key to make the graphic enlarge
settings effective. Drawing can now be performed with the new
settings.

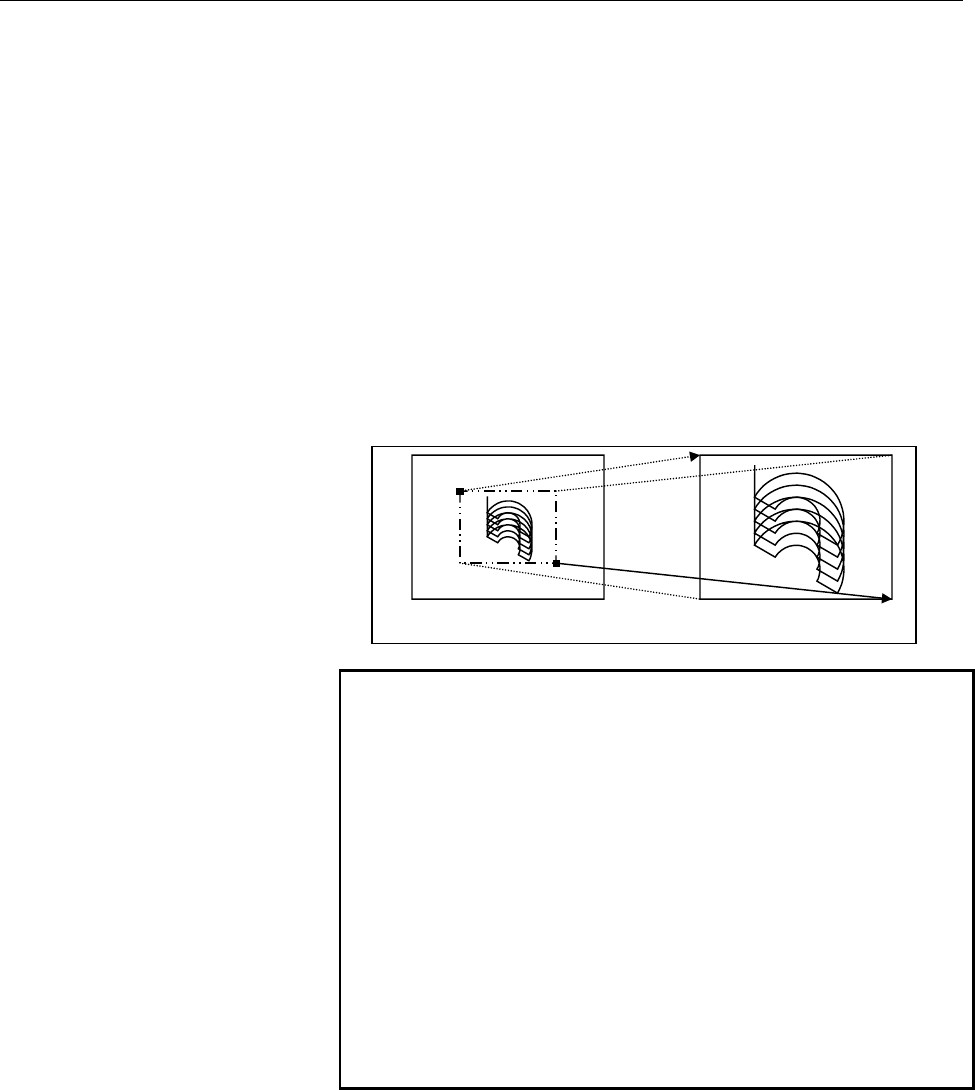

Before graphic enlarge
After graphic enlarge
NOTE
1 Graphic movement or graphic enlargement cannot
be performed during tool path drawing.
2 To cancel the graphic shift/enlarge procedure, press
the [CANCEL] soft key.
3 Even after graphic shift/enlarge has been set up, the
previously drawn tool path will not be shifted or
enlarged. The settings of graphic shift/enlarge take
effect after the [ERASE] soft key is pressed.
4 The settings of graphic shift/enlarge are not
automatically stored in the appropriate graphic
parameters. For an explanation of the procedure for
storing the settings in the graphic parameters, see
the next section, "Storing and canceling the settings
of graphic shift/enlarge."
