4.AUTOMATIC OPERATION OPERATION B-63324EN-1/03

- 174 -

(5) If the direction of movement is reversed as a result of a manual

handle interrupt, backlash compensation is applied. In this case,

pitch error compensation is applied to the position set after the

interrupt.

(6) For a manual handle interrupt, the application of acceleration/

deceleration is based both on the cutting feed acceleration/

deceleration (parameter No. 1622) and jog feed acceleration/

deceleration (parameter No. 1624). When bit 0 (MNJ) of parameter

No. 1604 is set to 1, however, the time constant for jog feed

acceleration/deceleration is disabled, so that the application of

acceleration/deceleration for a manual handle interrupt is based only

on the time constant for cutting feed acceleration/deceleration.

- Manual handle interrupt and coordinate systems

(1) The workpiece and local coordinate systems are shifted by the

magnitude of a manual handle interrupt. Therefore, when an absolute

command is specified in a workpiece or local coordinate system, the

end point is shifted by the magnitude of the interrupt.

All workpiece and local coordinate systems are shifted by the same

amount at the same time regardless of which coordinate system has

been selected when the interrupt is performed.

(2) A manual handle interrupt does not change the basic machine

coordinate system. Therefore, the end points of an absolute command

(G53) and automatic reference position return (G28) issued in the

machine coordinate system are not affected by the manual handle

interrupt.

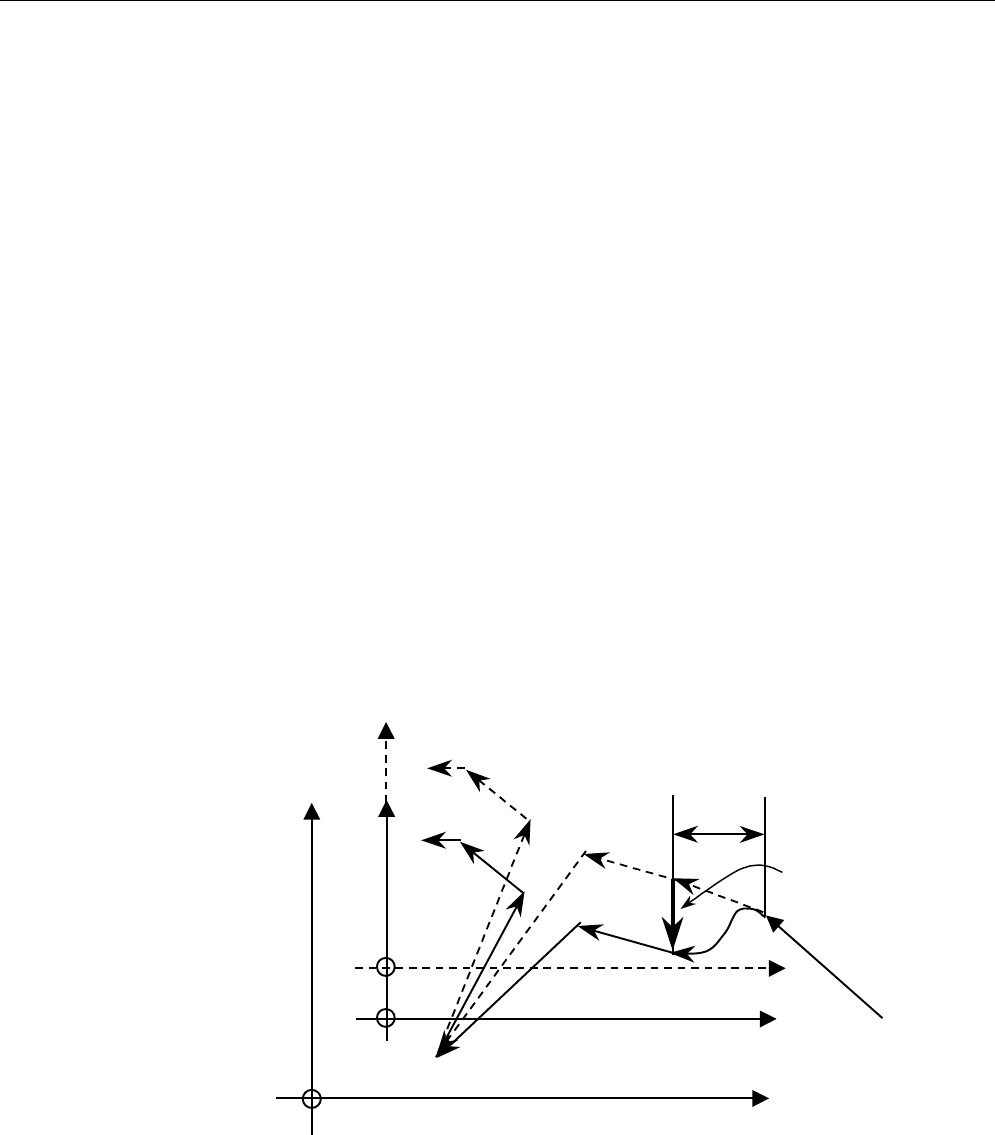

(G90G54wwww)

(G90G53wwww)

(Basic machine coordinate system)

(Workpiece and local coordinate systems after interrupt)

(Workpiece and local coordinate

systems before interrupt)

Path after

interrupt

Programmed path

Manual handle

interrupt

Shift by manual

handle interrupt

Fig. 4.13 (a) Fixed cycle

(3) The magnitude of the manual handle interrupt can be cleared by

presetting the workpiece coordinate system (G92.1).

- Position display

1 The following table shows the relationship between movement by

handle interruption and position display data:
