10.DISPLAY OPERATION B-63324EN-1/03

- 432 -

Display contents

- Current position

The current positions in the following coordinate systems are displayed

simultaneously:

RELATIV : Displays the current position in the relative coordinate

system

ABSOLUT : Displays the current position in the workpiece

coordinate system.

MACHINE : Displays the current position in the machine coordinate

system.

- Remaining amount of travel

The remaining amount of travel for the commands in a single block is

displayed.

- Actual feedrate

The actual feedrate and the actual spindle speed are displayed.

By setting parameter NOS (bit 0 of No. 2204) to 1, the display of the

actual spindle speed is suppressed.

Display of the current position in the relative coordinate system

Relative-position display screen

On this screen, the current position in the relative coordinate system

that is relative to the operator-specified coordinates is displayed.

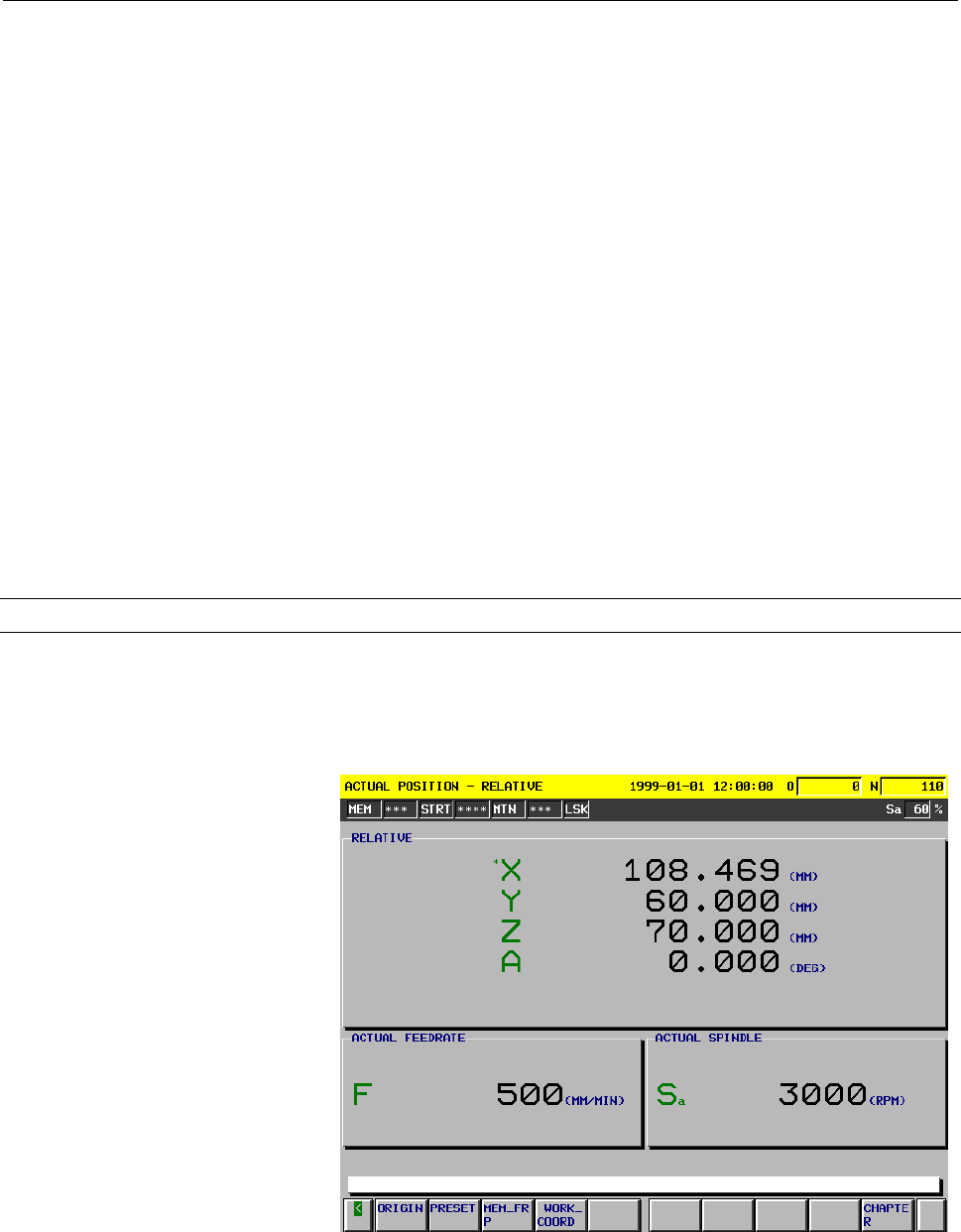

Fig.10.5 (b) Relative-Position Display Screen
