B-63324EN-1/03 OPERATION 9.SETTING AND DISPLAYING DATA

- 395 -

9.19 CALCULATION KEY

The expression entered in the key-in buffer is evaluated by pressing the

calculation key

SHIFT

ALTER

CALC

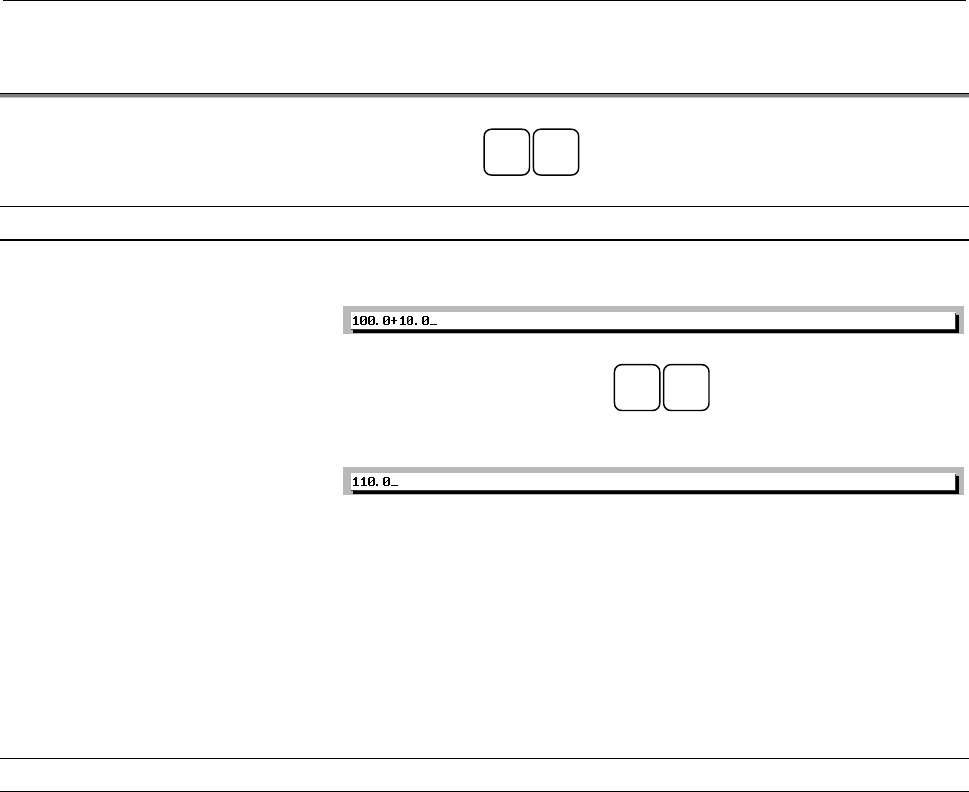

Operation

- Evaluating a single expression

(1) Enter an expression in the key-in buffer.

(2) Press the calculation key

SHIFT

ALTER

CALC

(3) The result of evaluating the expression is stored in the key-in

buffer.

- Evaluating multiple expressions

Alphabetic and special characters in the key-in buffer other than those

of function names are assumed to be end-of-expression symbols.

Multiple expressions can be entered by delimiting them with end-of-

expression symbols. Each expression is evaluated.

(Examples)

100.0/2;200.0/2;300.0/2_ -> 50.0;100.0;150.0_

X350.0*3Y120.0/5;X20.0*3.5;_ -> X1050.0Y24.0;X70.0;_

Explanation

- Numeric value types

There are two types, integer and real.

(1) Integer type: String of digits consisting of 0 to 9 only

(Example) 10735

(2) Real type: String of digits containing a decimal point

(Example) 10.23

- Results of calculation

(1) The result of calculation with an integer value and an real value is

of real type.

(2) The result of calculation is converted into a character string in the

following range:

Integer type: -999999999 to 999999999

Real type: -999999999.0 to -0.000000001

0.0

0.000000001 to 999999999.0

- Elements that can be used in expressions

(1) Numeric values

(2) Operators representing the four basic arithmetic functions, +, -, *,

and /

(3) Brackets [ and ]

(4) Functions
