B-63324EN-1/03 OPERATION 9.SETTING AND DISPLAYING DATA

- 393 -

Setting of parameters of axis type on an axis-by-axis basis

When an item of a parameter of axis type is specified on the adjustment

screen, the same value is set for all axes except an axis specified by bit

7 (NFF) of parameter No. 1009. The display indicates a setting for the

first axis.

When a different value is to be set for each axis, enter data on the

parameter screen. (A parameter number check can be made using the

[AUX] soft key.) If a different value is set for each axis, an asterisk (*)

is prefixed to the numeric value indication of each item.

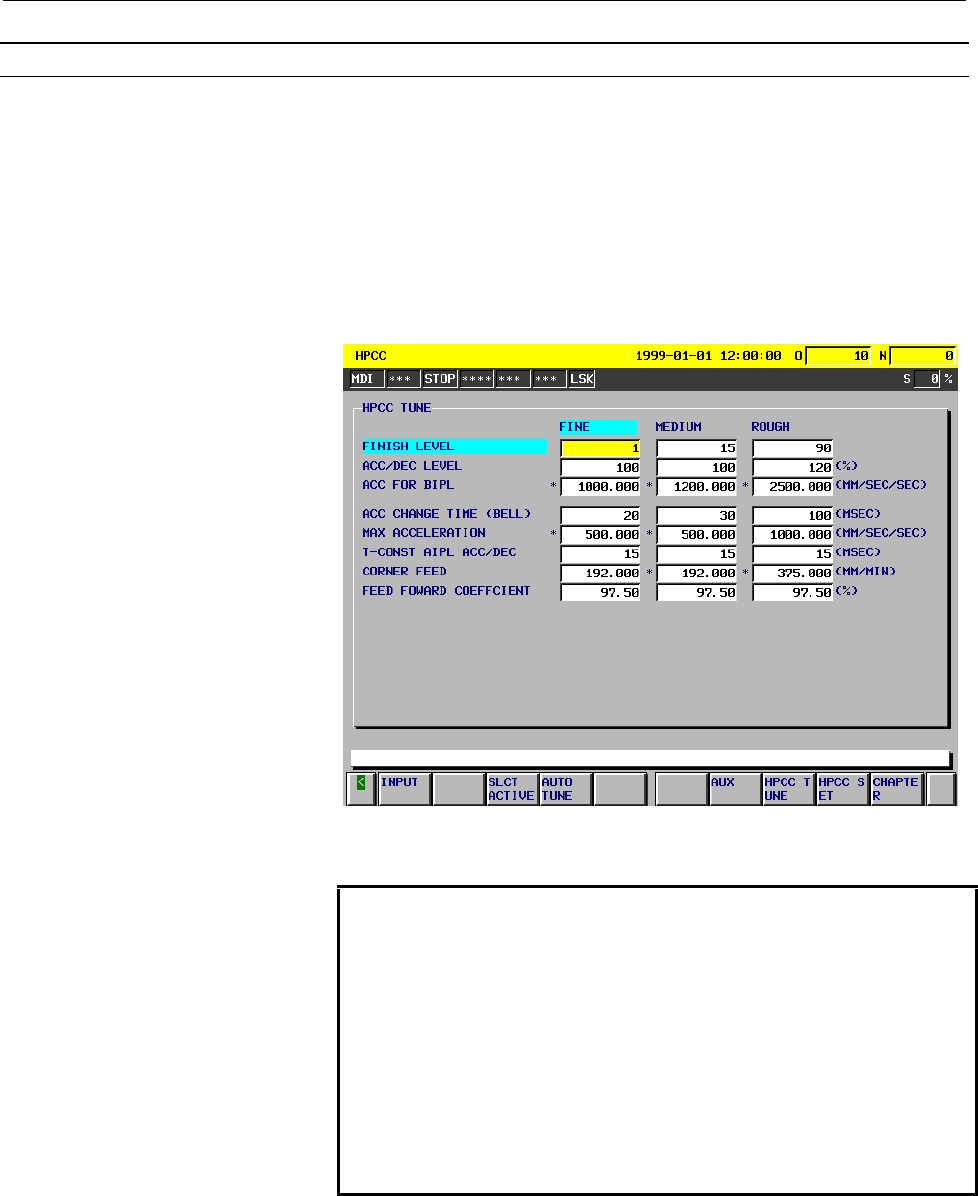

Fig. 9.18 (d) Example of Setting on an Axis-by-Axis Basis

Cautions

NOTE

1 Settings made in automatic setting or automatic

adjustment are only guideline values. The actual

error may differ from that expected due to causes

such as a servo system delay.

2 If the gear reduction ratio of a rotation axis is very

large, an overflow may occur in feed-forward

calculation by the servo software, resulting in an

alarm (rotation axis digital servo parameter error)

immediately after automatic adjustment. In such a

case, set bit 4 of parameter No. 1804 for the axis to 1.
