B-63324EN-1/03 OPERATION 8.EDITING PROGRAMS

- 293 -

- Program directory screen

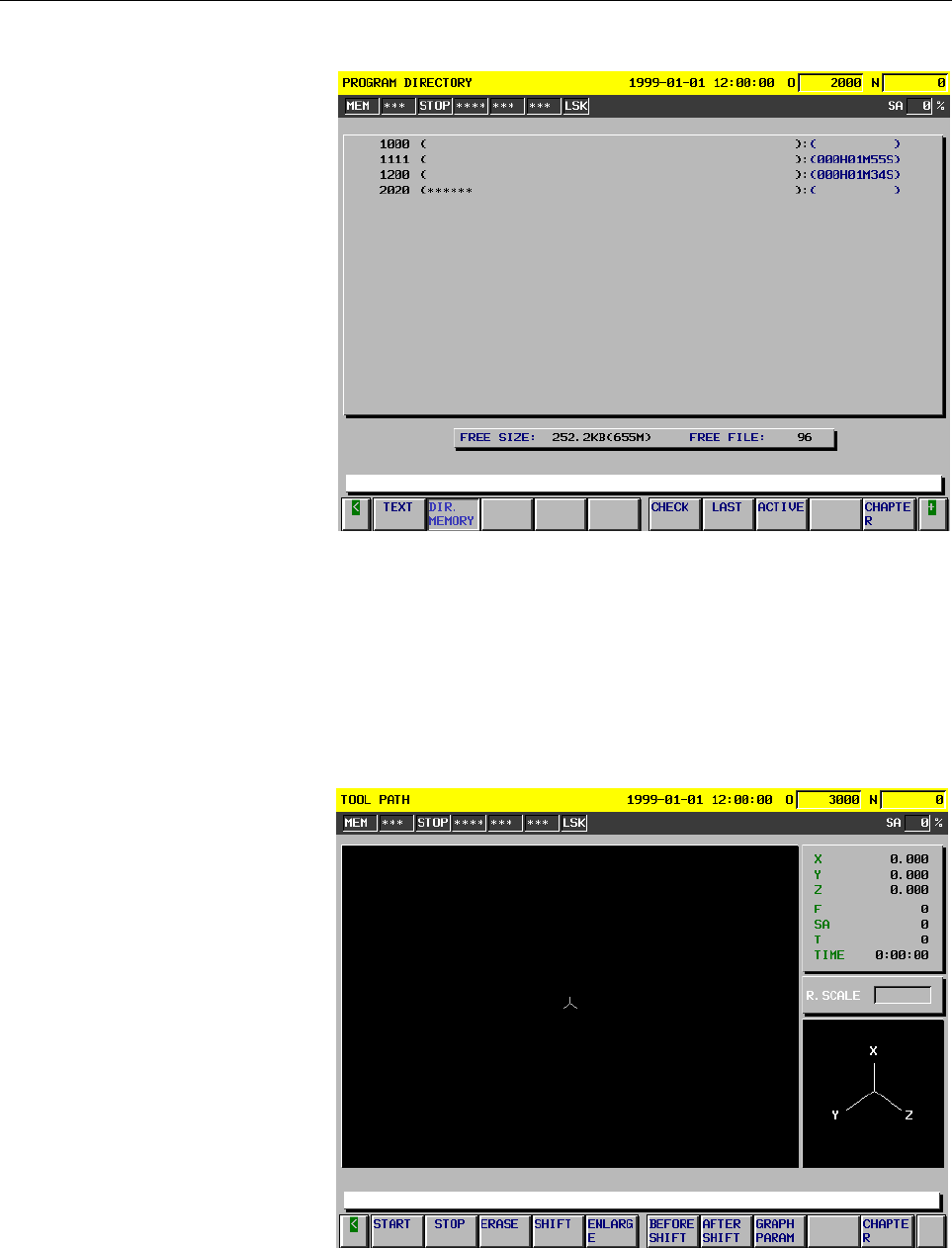

Fig.8.21 (b) Program Directory Screen

Follow the procedure described in Section II-10.1, "Programs" to

display the program directory screen. On the program name list on this

screen, stamped machining times are displayed instead of program

sizes when parameter TIM (bit 4 of No. 0011) is set to 1. In the second

or third word of a program number block, a comment section in the

format of "(hhhHmmMssS)" is displayed as the machining time.

- Tool path drawing screen

Fig.8.21 (c) Tool Path Drawing Screen

Follow the procedure described in Section II-10.8, "Drawing" to

display the tool path drawing screen. This screen can display the time

being measured in real-time.
