Series 15i/150i - MA (Operation) Operators manual Page 522

Operators manual

Page of 628

/ 628

B-63324EN-1/03 OPERATION 10.DISPLAY

- 501 -

- Closing a sub screen

To close a sub screen, press , then numeric key .

Depending on which screen is in the edit state, the sub screen can also

be closed as described below.

(1) If the sub screen is in the edit state

Press , then numeric key .

Alternatively, click soft key [CLOSE SCREEN].

(2) If the main screen is in the edit state

Press , then numeric key to place the

sub screen in the edit state.

Then, perform the operation described in (1) above.

- Moving/enlarging a sub screen

Place the sub screen in the edit state and click soft key

[MOVE/ENLARG].

This changes the soft keys to those for movement and enlargement.

Use the soft keys for movement to move the sub screen in the directions

of the arrows.

Use the soft keys for enlargement/reduction to change the size of the

sub screen.

To end movement/enlargement, click soft key [SET END].

The units in which the size of a sub screen are changed differ

depending on the display item on the sub screen. For some display

items, the sub screen cannot be enlarged.

The sub screen cannot be moved or enlarged in such a way that the

CNC state display portion at the top of the main screen and the soft

keys are hidden.

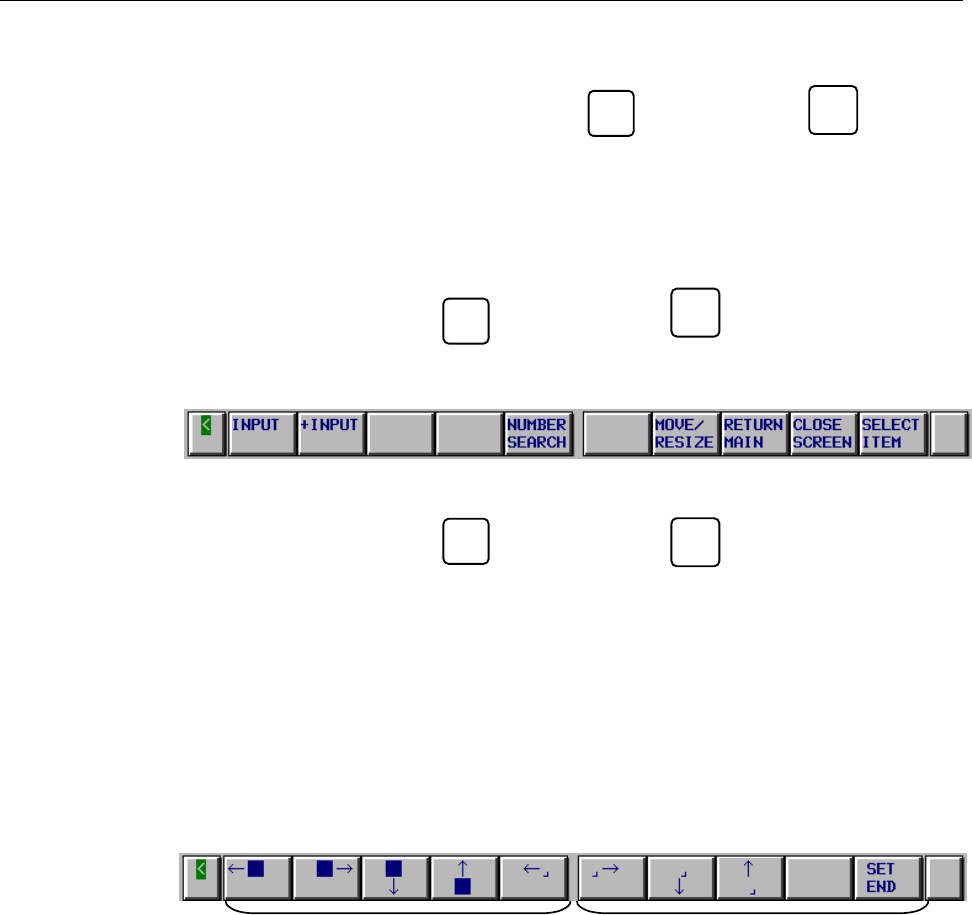

Soft keys for movement Soft keys for enlargement/reduction
