10.DISPLAY OPERATION B-63324EN-1/03

- 466 -

- Horizontal rotation angle

When the graphic coordinate system selected is a three-dimensional

one, such as 7 (XYZ), 8 (YZX), or 9 (ZXY), the coordinate system can

be rotated about a horizontal plane of rotation. The rotation angle can

be set in the range of -360 deg. to +360 deg..

The initial rotation angle can be set for parameter No. 4831. The actual

rotation angle is equal to the initial rotation angle plus the specified

rotation angle.

In Fig. 10.11 (f), shown below, graphic coordinate system XYZ is

converted into XY"Z" because of the following settings:

Initial rotation angle: 180 deg.

Horizontal rotation angle: 30 deg.

180 deg.

X’

Y’

Horizontal plane of rotation

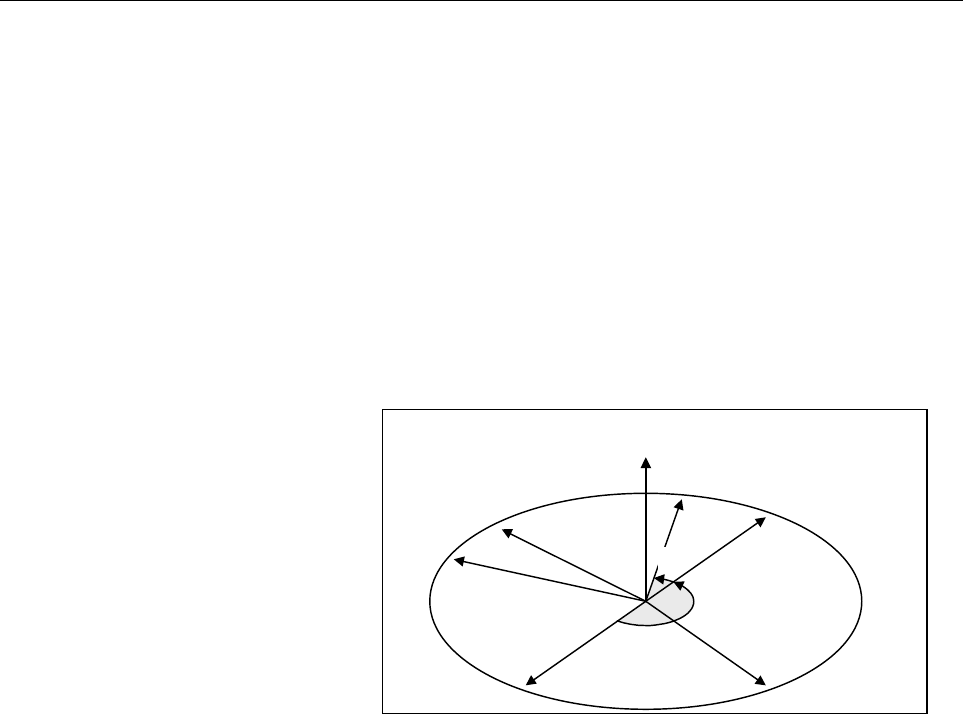

Fig.10.11 (f) Horizontal Rotation of a Coordinate System
