10.11 BACKGROUND DRAWING

Background drawing allows the tool path of a program to be drawn

without machining. It also enables the tool path of another program to

be drawn during machining.

Background drawing is faster than ordinary tool path drawing, thereby

allowing the program to be checked promptly.

Background drawing screen

Follow the procedure described in Section II-2.3, 2.5, "Graphics" to

display the background drawing screen.

- Background drawing screen

Background drawing screen is divided into three portions:

- Drawing area in which a tool path is drawn.

- Portion in which machining information such as the tool position

is displayed

- Portion in which the graphic coordinate system is displayed

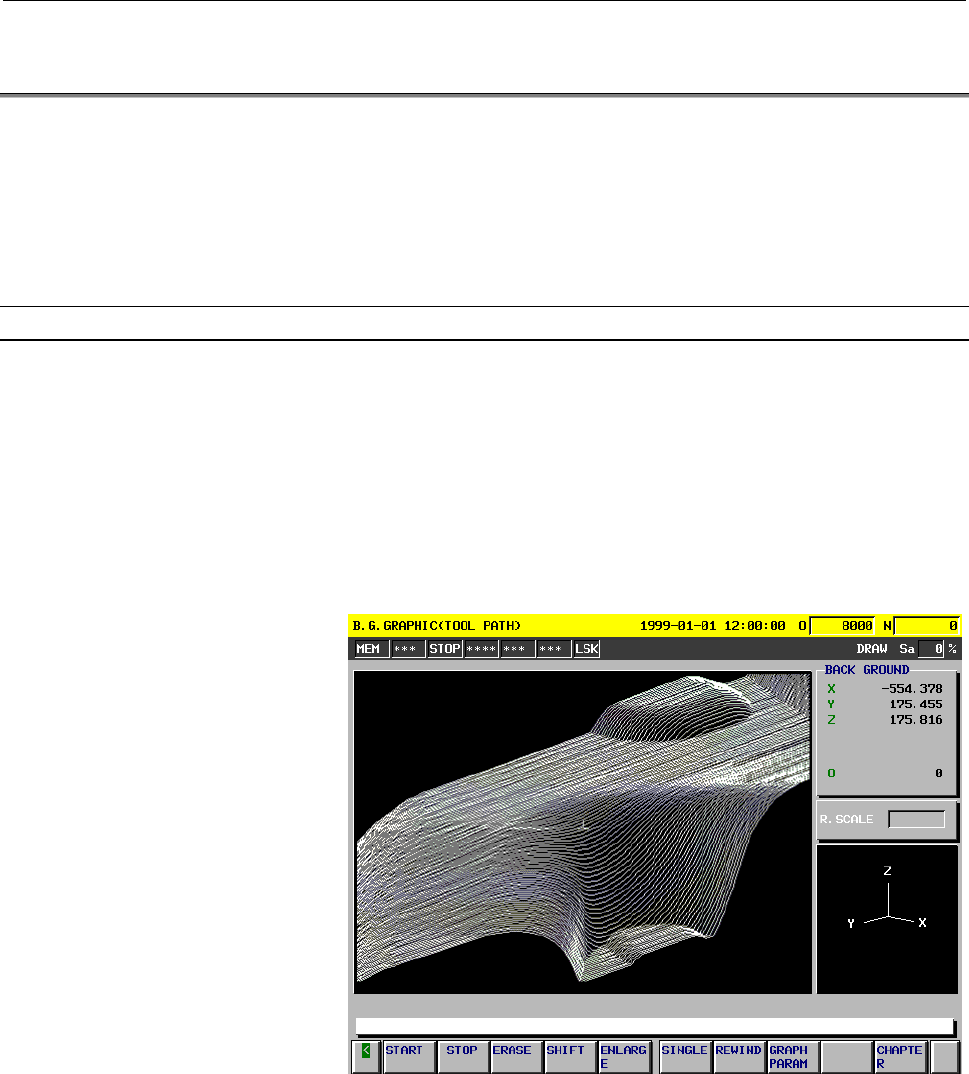

Fig.10.11 (a) Background drawing screen
