10.DISPLAY OPERATION B-63324EN-1/03

- 500 -

Operation

- Displaying a sub screen

To display a sub screen, press , then numeric key .

A sub screen is displayed in the sub screen edit state and the soft keys

change to those for the sub screen.

- Display items on a sub screen

To change the display item on a sub screen, place the sub screen in the

edit state and press soft key [SELECT ITEM].

This changes the sub screen to the display item select state and causes

the following display item list to appear on the sub screen.

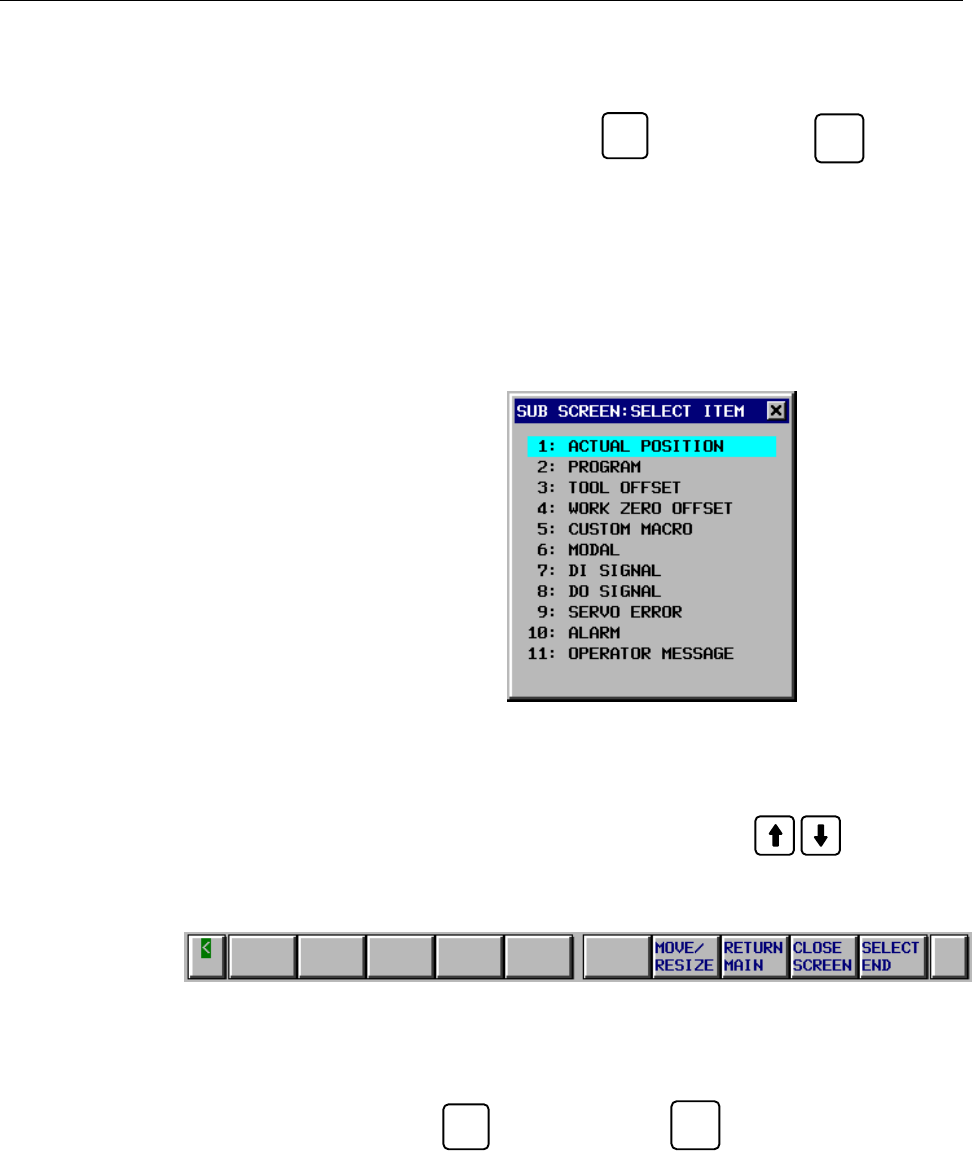

Fig. 10.14 (o) Display Item List

When a sub screen is first displayed on a main screen, the sub screen

enters the display item select state.

In the display item select state, use cursor keys to position the

cursor to the desired display item, then click soft key

[SELECT END].

- Switching the object of editing

(1) To change the object of editing to the sub screen

Press , then numeric key .

When the sub screen enters the edit state, the title bar of the sub

screen turns blue.

(2) To change the object of editing to the main screen

Press soft key [RETURN MAIN].

When the main screen enters the edit state, the title bar of the sub

screen turns dark gray.
