9.SETTING AND DISPLAYING DATA OPERATION B-63324EN-1/03

- 352 -

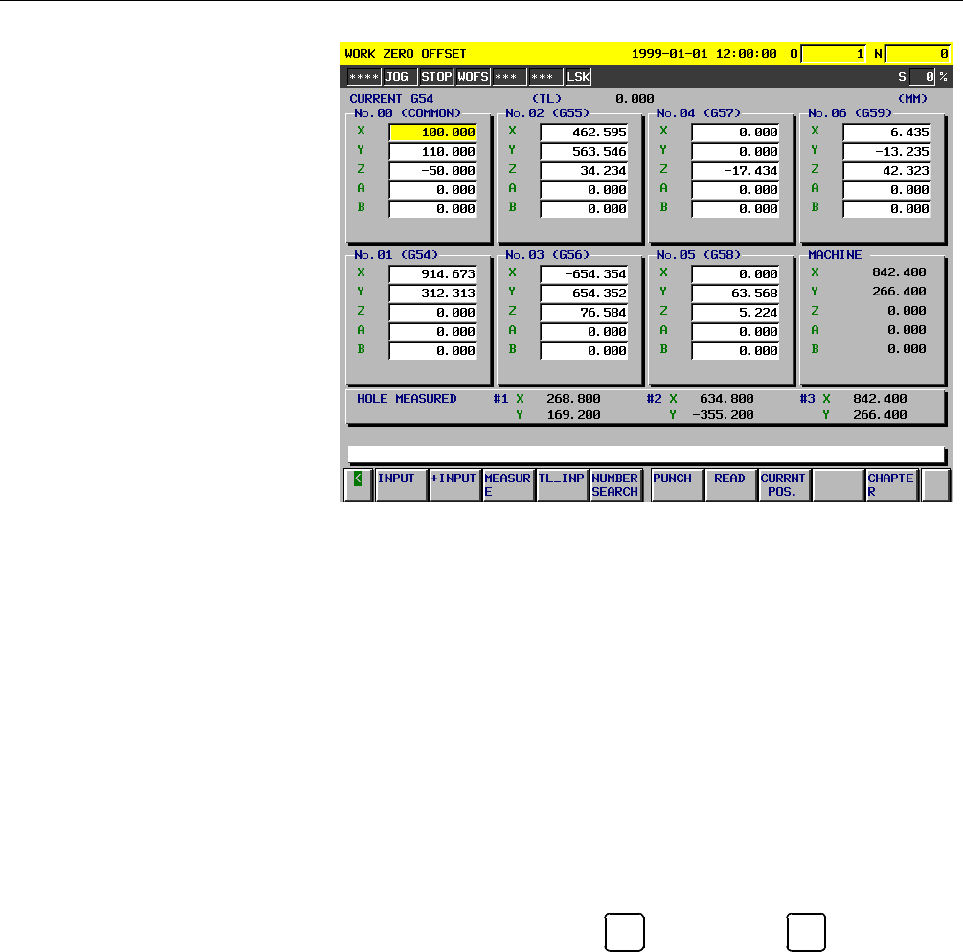

Fig. 9.10 (e) Workpiece Origin Offset Screen Displayed in Workpiece

Origin Measurement

7 Move the measurement probe to a second measurement point.

Meanwhile, the CNC locks the movement in the direction toward

the current measurement point. For instance, if the probe is

moved from a measurement point to which the probe was moved

in the +X direction, the CNC allows movement in the X direction

and locks the movement in the +X, +Y, and -Y directions until the

skip signal goes to 0. The operation performed after contact is

made at the second measurement point is the same as that after the

first measurement point.

8 Bring the probe into contact with a third measurement point, then

press the [MEASURE] soft key and the [CENTER] soft key.

Then, the center is obtained from the coordinates of the three

measurement points, and the workpiece origin offsets on the X-

axis and Y-axis are specified. To cancel the measurement prior to

its completion, press the

RESET

key. When the

RESET

key is pressed,

the coordinates of the measurement points stored before that are

all cleared.
