B-63324EN-1/03 OPERATION 3.MANUAL OPERATION

- 73 -

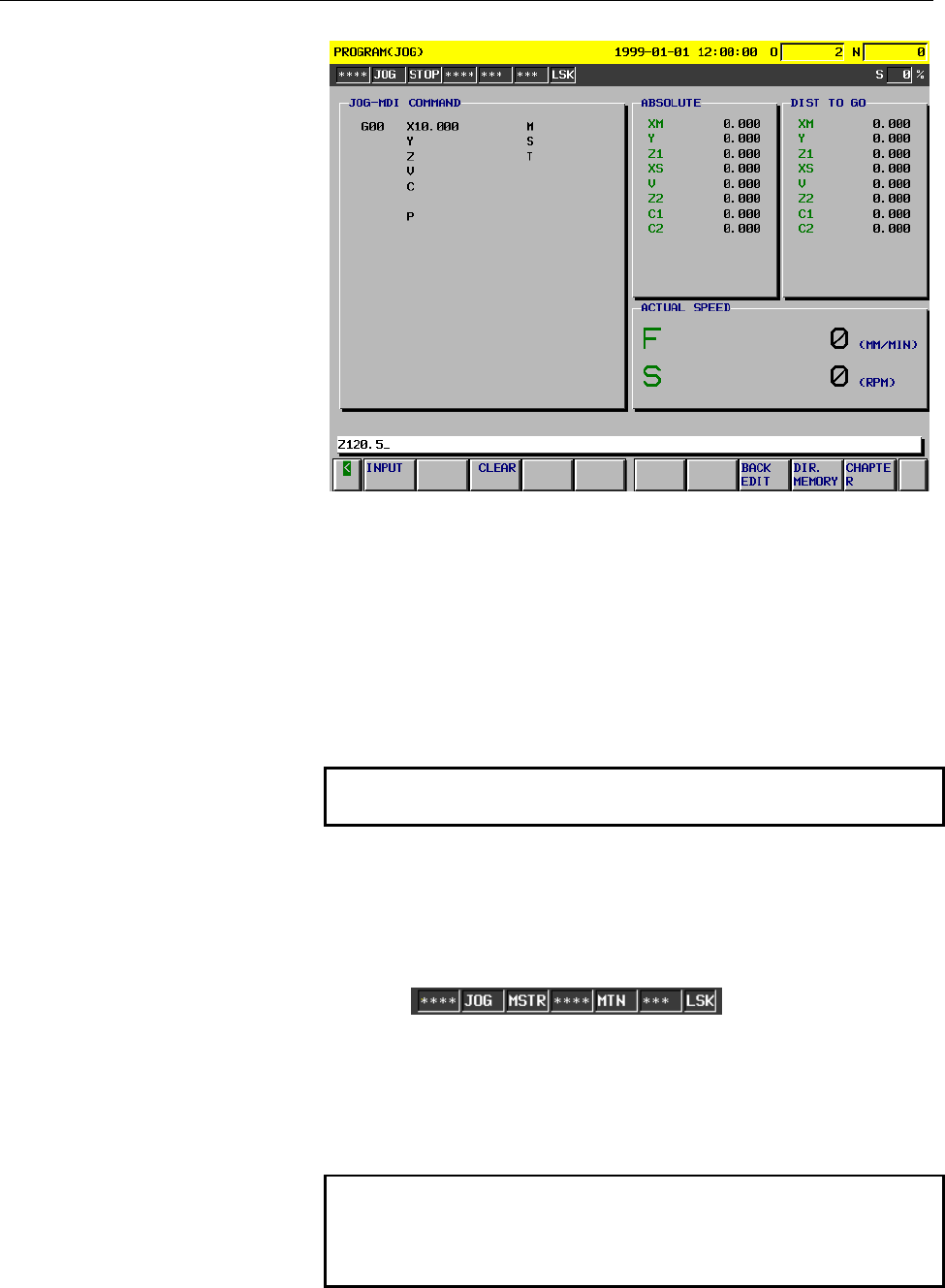

The following data can be set:

1. G00: Positioning

2. G01: Linear interpolation

3. G28: Automatic reference point return

4. G30: 2nd, 3rd or 4th reference position return

5. M codes: Miscellaneous functions

6. S codes: Spindle functions

7. T codes: Tool functions

8. B codes: Second auxiliary functions

The set data is held in memory even if the screen or mode is changed.

NOTE

Data cannot be set when an alarm occurs.

4 Press the Cycle Start button on the machine operator’s panel to

start command execution. The status is indicated as "MSTR." The

automatic operation signal STL can be set to "1" (ON) by setting

bit 2 (STJ) of parameter No. 2000.

5 When execution is completed, the "MSTR" status indication is

cleared from the screen, and automatic signal operation STL is

turned OFF. All set data is cleared. G codes are set to G00 or G01

according to the setting of bit 0 (G01) of parameter No. 2401.

NOTE

If the Cycle Start button is pressed while an alarm has

occurred, a "START IMPOSSIBLE" warning is

generated, and the entered data cannot be executed.
