4.AUTOMATIC OPERATION OPERATION B-63324EN-1/03

- 138 -

Output of all M codes and final S, T and B codes

If the Cycle Start button is pressed after the program execution restart

block is searched when bit 6 (MOA) of parameter No. 7620 is set to "1",

all sampled M codes and final S, T and B codes are automatically to the

PMC before the tool moves to the machining restart position.

When codes M10, M11, M12, M13, M14, T0101, S1000 and B10

have been sampled, the program is executed in the following

format before the tool moves to the machining restart position.

M10 T0101 S1000 B10 ;

M11 ;

M12 ;

M13 ;

M14 ;

Outputting the M, S, B codes on the program restart screen

When the MOP bit (bit 3 of parameter 7620) = 1, enter M, S, and B

codes from the MDI in the MEM or TAPE mode until the tool

completes moving to the machining restart position after searching for

the block to be restarted with the program restart function. The

program restart function then outputs these codes to the PMC.

Operation

1 Search for the block to be restarted with the program restart

function. The program restart screen is displayed. When bit 3

(MOP) of parameter No. 7620 is set to 1, the [OVERSTORE] and

[CLEAR] soft keys appear.

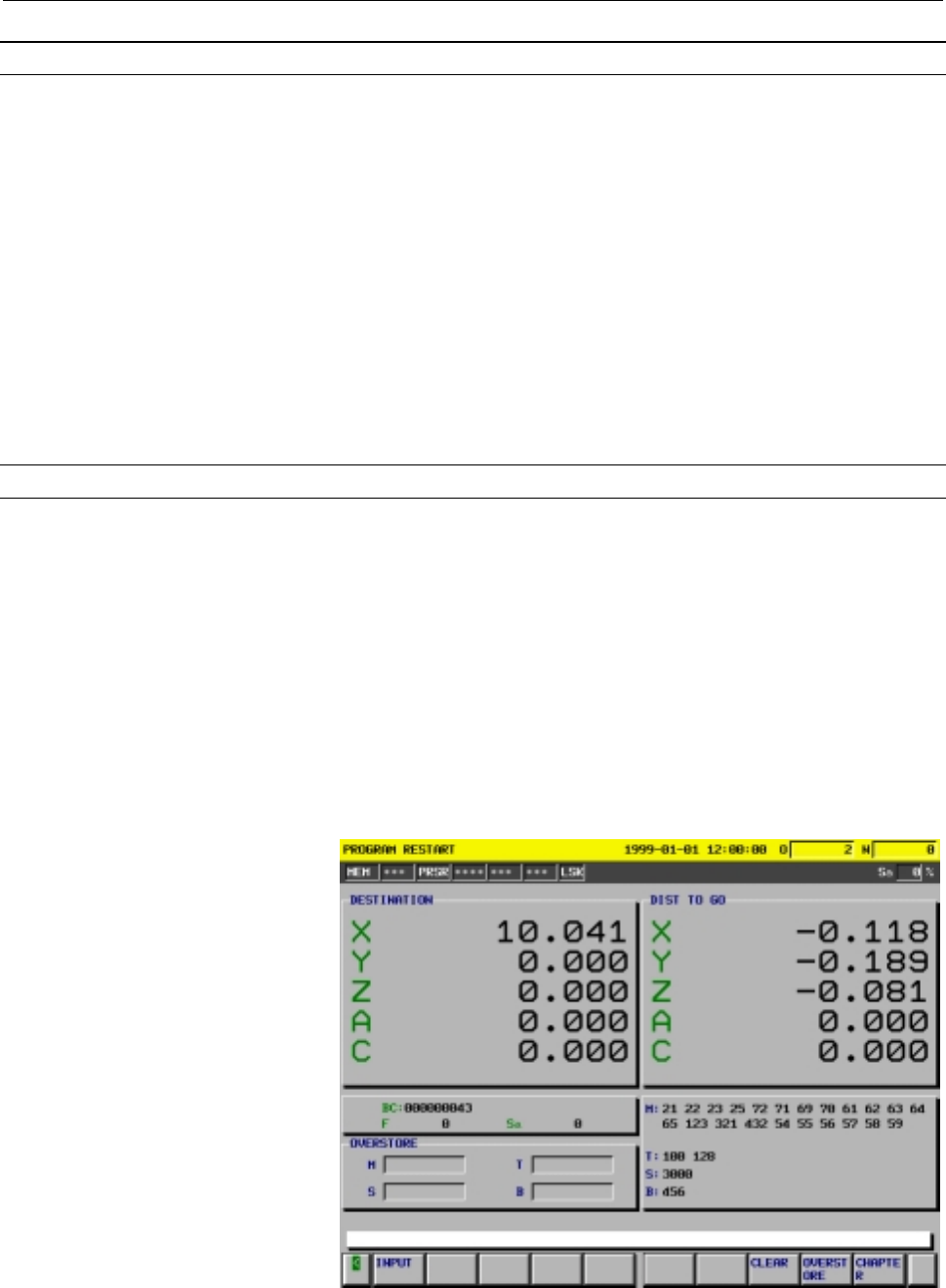

Fig.4.8 (a)
