10.19 2-LCD-UNIT CONNECTION FUNCTION

Description

Until now, it was only possible to display screens on a single LCD unit.

By using this function, it is now possible to simultaneously display the

same screen on two LCD units.

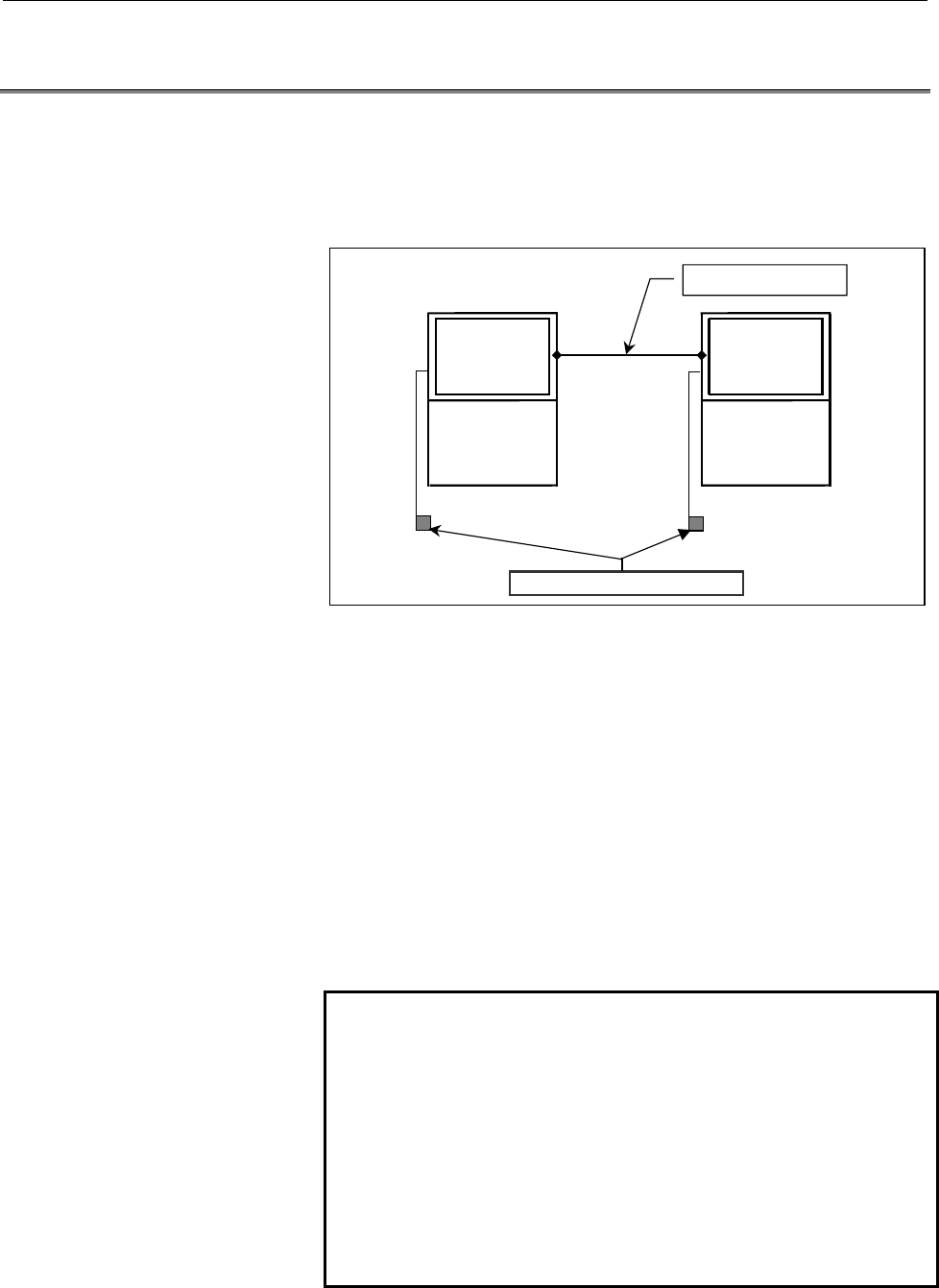

1st LCD

1st MDI

2nd LCD

2nd MDI

Optical fiber cable

Switches (connected to JA49)

- MDI switching

MDI switching is performed with switches (JA49) mounted on the

individual LCD units. Pressing the switch on one LCD unit causes the

MDI of that LCD unit to be enabled, allowing for key operations.

MLC, bit 3 of parameter No. 2219, allows the user to select between

two modes for determining the LCD unit to be selected at power on:

- Mode in which the LCD unit whose MDI is to be enabled first at

power on is selected with parameter No. 2221.

- Mode in which the LCD unit that was selected prior to the power

being disconnected is selected at power on.

Restrictions

- Memory card interface

Only the memory card interface of the first LCD unit is available.

Note the following:

NOTE

1 If a memory card or modem card is inserted into the

memory card interface of the first LCD unit, pressing

the switch on the second LCD unit does not switch

the system to the second LCD unit.

2 If a card is inserted into the memory card interface of

the first LCD unit after the system is switched to the

second LCD unit, this card cannot be used.

Before the memory card interface of the first LCD unit

can be used, switch the system back to the first LCD

unit.
