9.2 DISPLAYING AND SETTING WORKPIECE ORIGIN OFFSETS

The workpiece origin offset for each workpiece coordinate system

(G54 to G59 and G54.1 P1 to G54.1 P48) and an external workpiece

origin offset are displayed and set.

Displaying the workpiece origin offset screen

To display the workpiece origin offset screen, follow the procedure

described in Section II-2.3 or II-2.5, "Offset Setting."

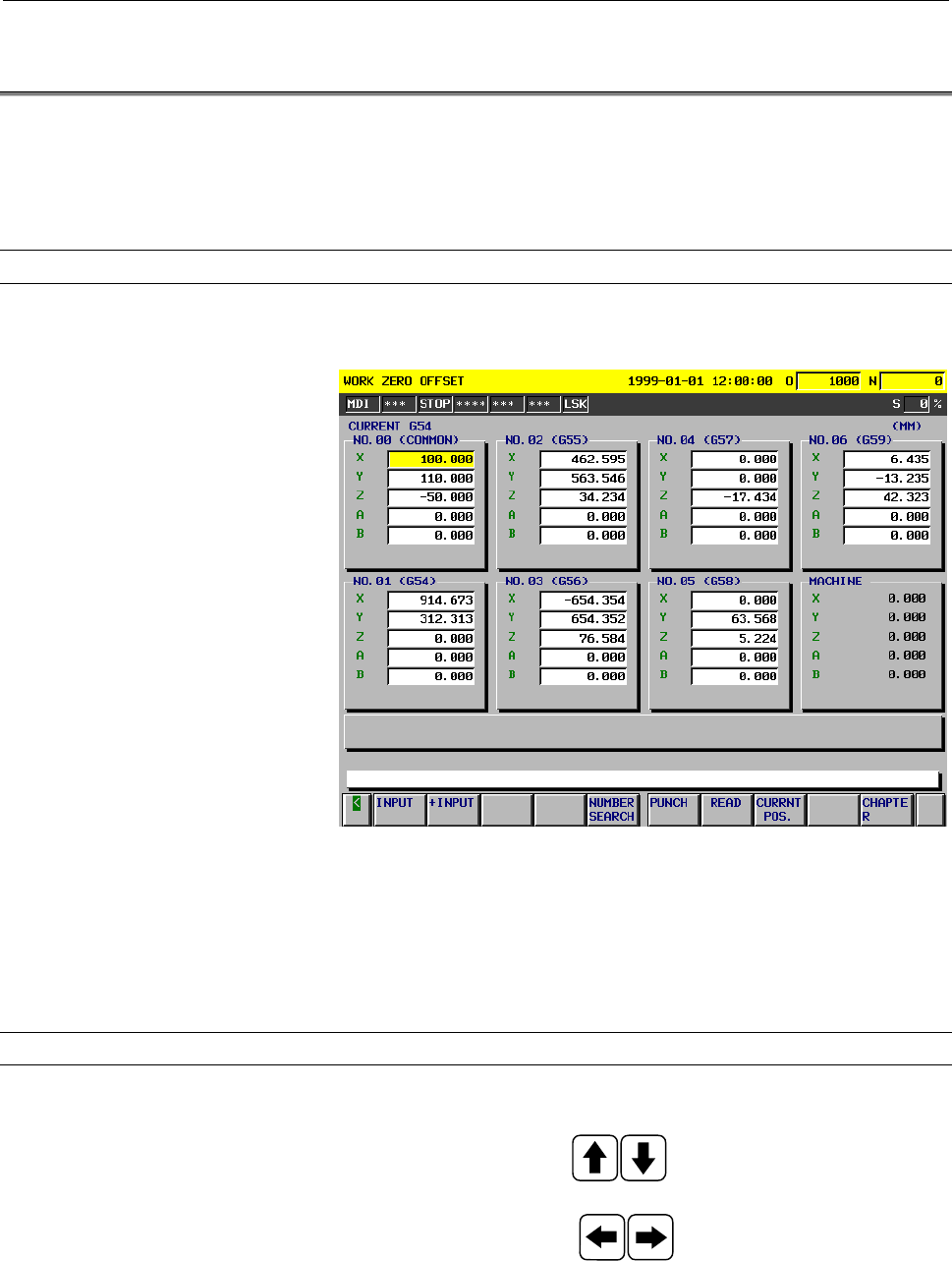

Fig. 9.2 Workpiece Origin Offset Screen

- Selecting display axes

By setting bit 4 (ZND) of parameter No. 1009, axes for which offsets

are displayed and set on the workpiece origin offset screen can be

selected.

Setting/updating workpiece origin offsets

- Positioning the cursor

1 Using the cursor keys , the cursor can be moved up and

down.

2 Using the cursor keys

, the cursor can be moved from

one workpiece coordinate system to another without changing the

axis for which the cursor is displayed.
