Series 15i/150i - MA (Operation) Operators manual Page 88

Operators manual

Page of 628

/ 628

B-63324EN-1/03 OPERATION 3.MANUAL OPERATION

- 67 -

3.3 INCREMENTAL FEED

In the incremental mode(s), pressing a feed axis and direction selection

switch on the machine operator’s panel moves the tool one step along

the selected axis in the selected direction.

Procedure for Incremental Feed

Procedure

1 Press the INC switch, one of the mode selection switches.

2 Select the distance to be moved for each step with the

magnification dial.

3 Press the feed axis and direction selection switch corresponding to

the axis and direction the tool is to be moved. Each time a switch

is pressed, the tool moves one step. The feedrate is the same as the

jog feedrate.

4 Pressing the rapid traverse switch while pressing a feed axis and

direction selection switch moves the tool at the rapid traverse rate.

Rapid traverse override by the rapid traverse override switch is

effective during rapid traverse.

The above is an example. Refer to the appropriate manual provided by

the machine tool builder for the actual operations.

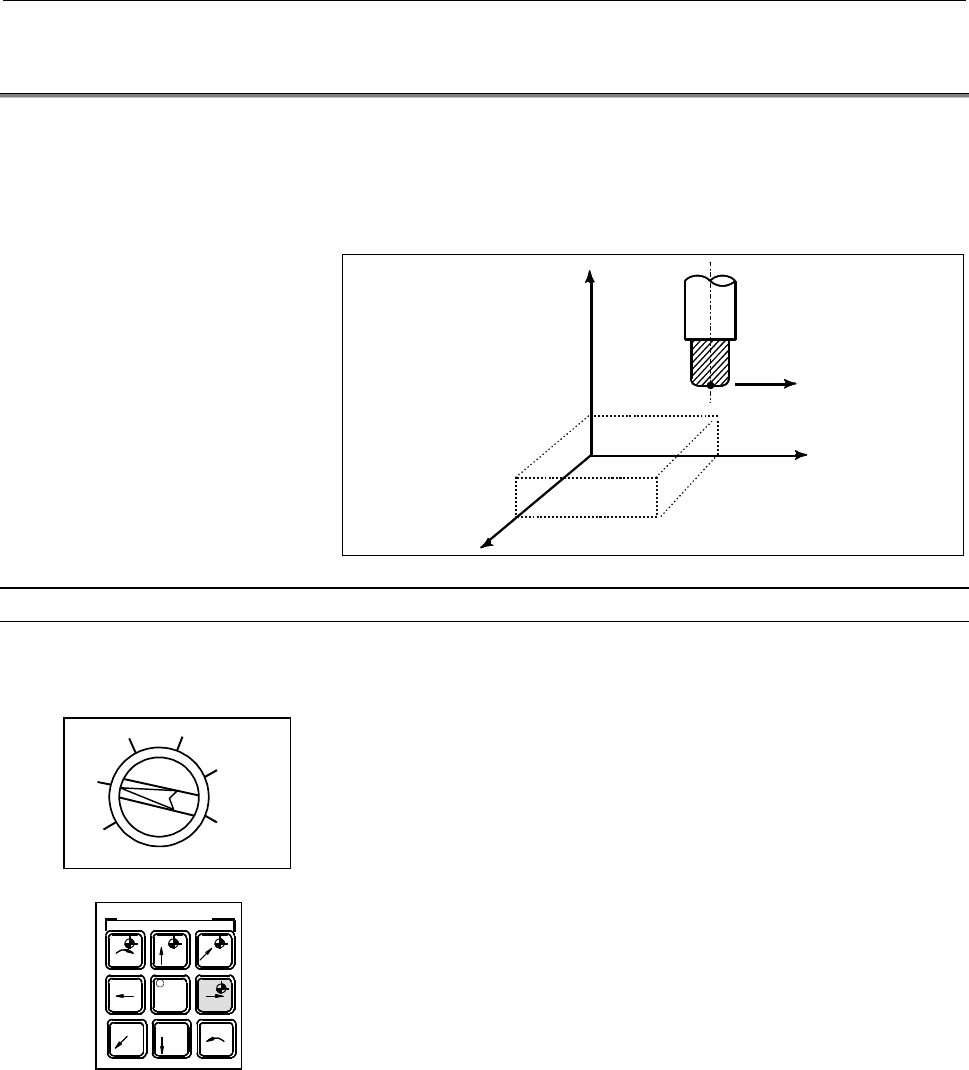

Tool

Each time a switch is

pressed, the tool moves

one step in the direction

specified by the switch.

+C +Z +Y

+X-X

-C

-Y

-Z

RAPID

AXIS DIRECTION

X10

X100

X1000

X10000

X100000
