10.DISPLAY OPERATION B-63324EN-1/03

- 494 -

- Actual position

For the actual position, the following items of information can be

displayed:

(1) Relative coordinates

(2) Absolute coordinates

(3) Machine coordinates

(4) Remaining amount of travel

(5) Manual interrupt amount (only when the manual handle interrupt

or simultaneous manual-auto operation options are provided)

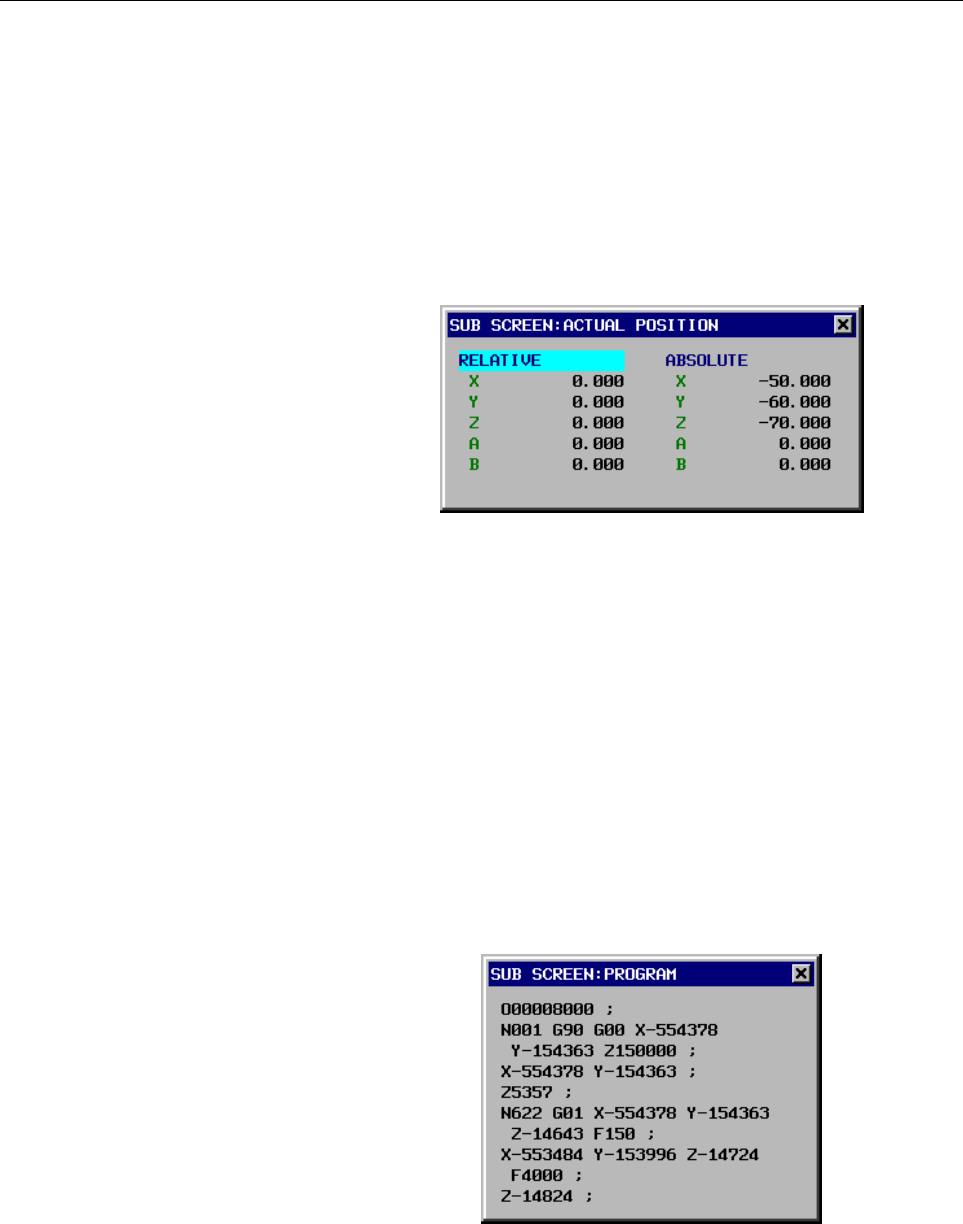

Fig. 10.14 (b) Actual Position

Position information is displayed for all axes. By enlarging the sub

screen horizontally and vertically, multiple types of position

information can be displayed. (In Fig. 10.14 (b), relative and absolute

coordinates are displayed.)

For information on changing the position information type, see

"Switching position information in the actual position display,"

described later.

When the sub screen is in the edit state, origin/preset can be performed

in the same way as in the position display on the main screen.

- Contents of the program

The contents of the currently executed program are displayed. The sub

screen can be enlarged/reduced in the horizontal and vertical directions.

The program cannot be edited.

Fig. 10.14 (c) Contents of the Program
