B-63324EN-1/03 OPERATION 3.MANUAL OPERATION

- 63 -

3.1 MANUAL REFERENCE POSITION RETURN

The tool is returned to the reference position as follows :

The tool is moved in the direction specified in parameter ZMI (bit 5 of

No. 1006) for each axis with the reference position return switch on the

machine operator’s panel. The tool moves to the deceleration point at

the rapid traverse rate, then moves to the reference position at the FL

speed. The rapid traverse rate and FL speed are specified in parameters

(No. 1420,1421, and 1425).

Rapid traverse override is effective during rapid traverse.

When the tool has returned to the reference position, the reference

position return completion LED goes on.

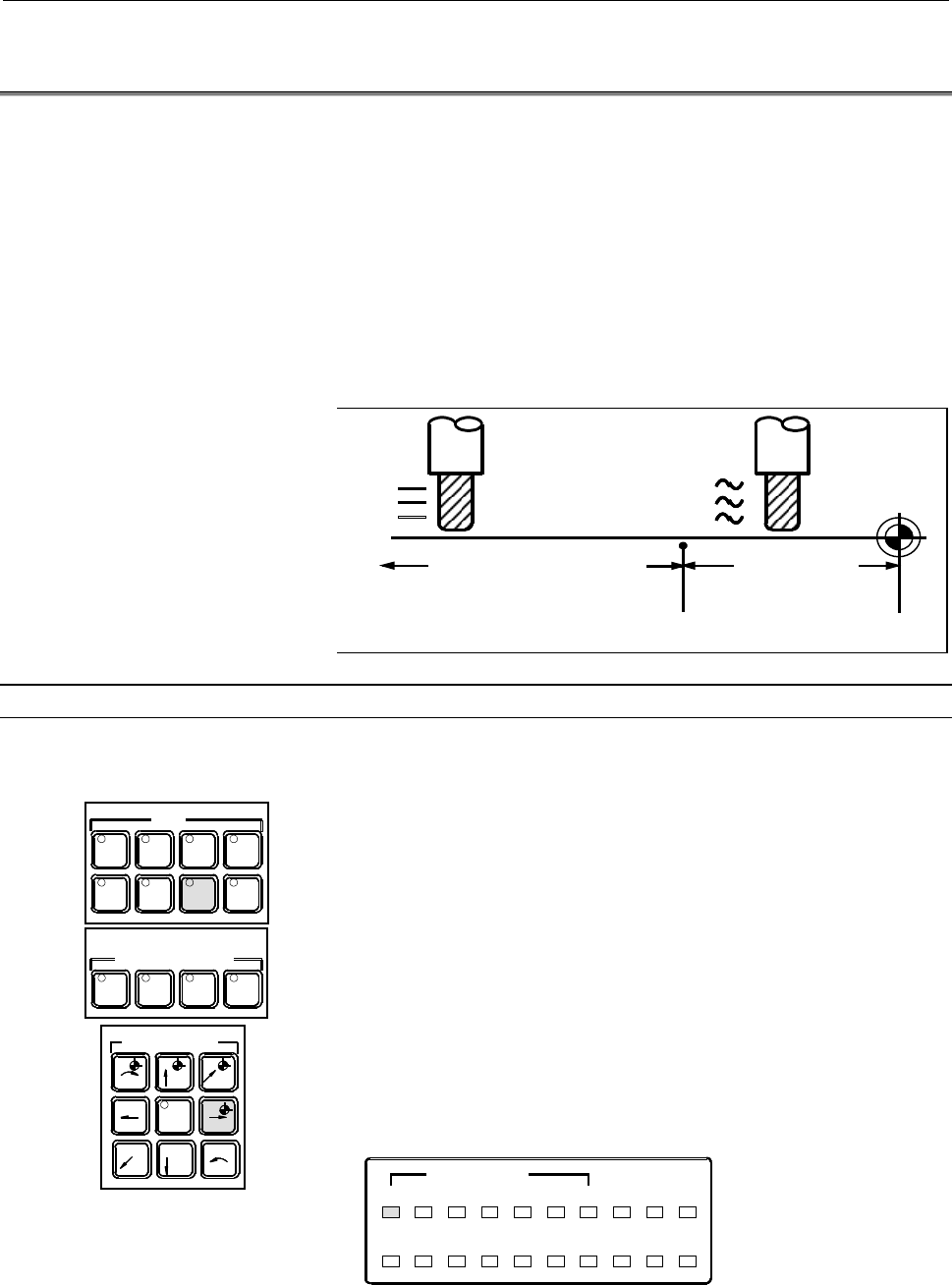

Decelerated

motion

FL speed

Reference

position

Deceleration

point

Rapid traverse motion

Rapid traverse rate

(rapid traverse override is

effective)

Procedure for Manual Reference Position Return

Procedure

1 Press the reference position return switch, one of the mode

selection switches.

2 To decrease the feedrate, press a rapid traverse override switch.

When the tool has returned to the reference position, the reference

position return completion LED goes on.

3 Press the feed axis and direction selection switch corresponding to

the axis and direction for reference position return. Continue pressing

the switch until the tool returns to the reference position. The tool

moves to the deceleration point at the rapid traverse rate, then moves

to the reference position at the FL speed set in a parameter.

4 Perform the same operations for other axes, if necessary.

The above is an example. Refer to the appropriate manual provided by

the machine tool builder for the actual operations.

REMOTE

MDI

MEMORY

EDIT

ZERO

RETURN

TEACHJOGHANDLE

MODE

50 10025

RAPID TRAVERSE

OVERRIDE (%)

MIRRROR IMAGE

PROGRAM

STOP

M02/

M30

MANU

ABS

SPINDLE

ORI TAP

ATC

READY

NC?

MC?

ZERO POSITION

+C +Z +Y

+X-X

-C

-Y

-Z

RAPID

AXIS DIRECTION
