Series 15i/150i - MA (Operation) Operators manual Page 558

Operators manual
B-63324EN-1/03 OPERATION 12.INPUTTING/OUTPUTTING DATA
- 537 -
Since floppy replacement is processed by the input/output device, no
special operation is required. The CNC will interrupt data input/ output
operation until the next floppy is inserted into the adaptor.
When reset operation is applied to the CNC during a request for floppy
replacement, the CNC is not reset at once, but reset after the floppy has
been replaced.
- Protect switch
The floppy is provided with the write protect switch. Set the switch to
the write enable state. Then, start output operation.
Fig 12.1 (a) Protect swtich
- Writing memo
Once written in the cassette or card, data can subsequently be read out
by correspondence between the data contents and file numbers. This
correspondence are output to the CNC and displayed. The data contents
can be displayed with display function for directory of floppy disk (See
Section II-10.12).
To display the contents,write the file numbers and the contents on the
memo column which is the back of floppy.
(Entry example on MEMO)
File 1 CNC parameters
File 2 offset data
File 3 CNC program O0100
: :
File (n-1) CNC program O0500
File n CNC program O0600

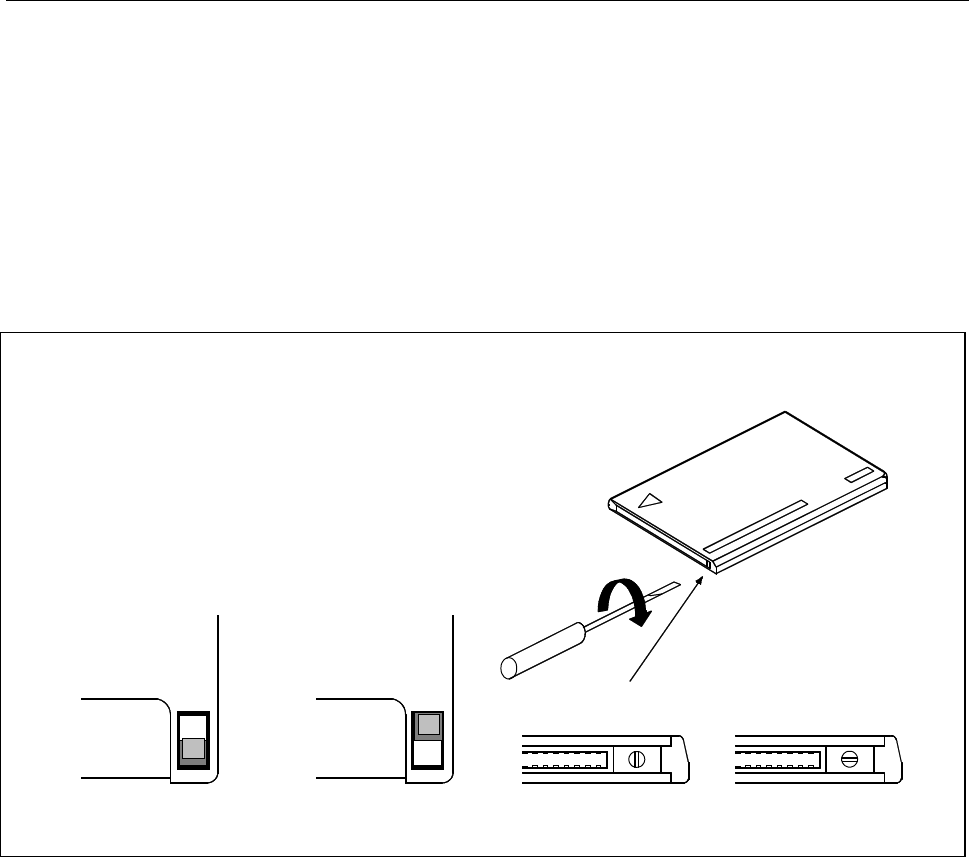

Write protect switch
(1)Write-protected (Only
reading is possible.)
(2)Write-enabled
(Reading, writing, and deletion
are possible.)
Write protect switch of a cassette
Write protect switch of a card
(1)Write-protected (Only
reading is possible.)
(2)Write-enabled
(Reading, writing, and deletion
are possible.)
