4.MANUAL OPERATION OPERATION B-63324EN-1/03

- 108 -

3.15 DISPLAYING PULSE VALUES AND AMOUNT OF

MOVEMENT BY MANUAL INTERRUPT

The amount of a handle interrupt is displayed for each of the functions

including handle feed in the longitudinal direction of the tool, handle

feed in the transverse direction of the tool, rotational handle feed

around the center of the tool tip, and change of tool length

compensation in the longitudinal direction of the tool. In addition, the

total amount of movement when each handle feed function is

performed is displayed.

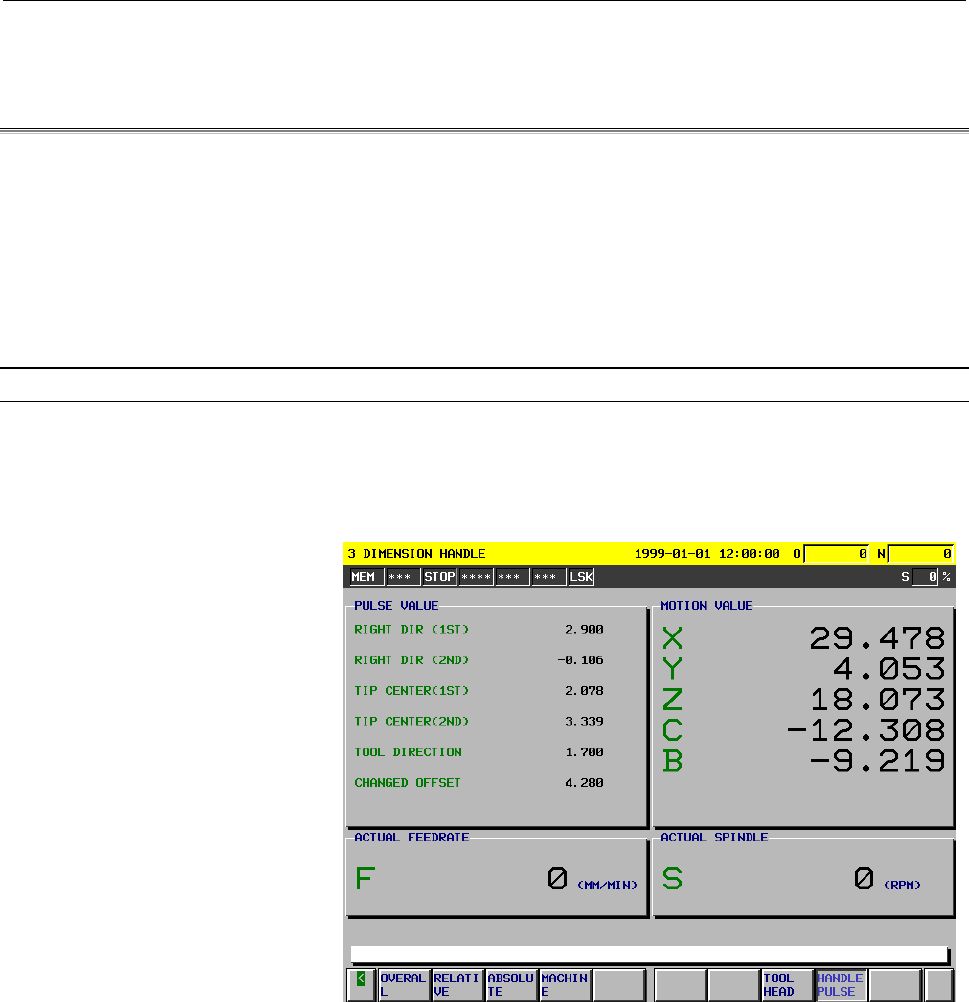

Screen displaying pulse values/amount of movement by manual interrupt

Follow the procedure described in Section II-2.3 or 2.5, "Displaying the

Screen Displaying Pulse Values/Amount of Movement by Manual

Interrupt" to display the screen displaying pulse values/amount of

movement by manual interrupt, shown below.

Display data

- Pulse value

The amount of handle pulse interrupt is displayed for each three-

dimensional handle feed/interrupt function. For Tool Direction and

Change offset, one handle pulse equals the least input increment on the

tool axis. For the other functions, one handle pulse equals the least

input increment on a target axis for tool movement.
